En stock Produit phare
5SU1674-7BK82

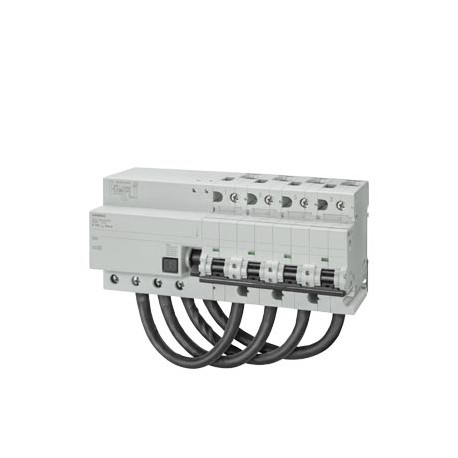

5SU1674-7BK82 SIEMENS RCBO, 10 kA, 4P, type B, selective, 300 mA, C-Char, In: 125 A, Un AC: 400 V
$0.00USD
4452 en stock
Spécifications clés
:VersionClassificationeClass627-14-22-07eClass7.127-14-22-07eClass827-14-22-07eClass927-14-22-07eClass9.127-14-22-07ETIM5EC000905ETIM6EC000905ETIM7EC000905ETIM8EC000905UNSPSC1439-12-16-26UNSPSC1539-12-16-03
EAN:4001869332345
UPC:Not available
ETIM:5
Informations sur le fournisseur
SIEMENS
Produits : 367174
Habituellement expédié sous 2 à 3 jours ouvrables
Qualité garantie
Livraison rapide
Support technique
Spécifications techniques
| Paramètre | Valeur |
|---|---|
| VersionClassificationeClass627-14-22-07eClass7.127-14-22-07eClass827-14-22-07eClass927-14-22-07eClass9.127-14-22-07ETIM5EC000905ETIM6EC000905ETIM7EC000905ETIM8EC000905UNSPSC1439-12-16-26UNSPSC1539-12-16-03 | |
| EAN | 4001869332345 |
| UPC | Not available |
| ETIM | 5 |
| UNSPSC | 14 |
| eClass | 6 |
| Code de groupe | P310 |
| Facteur Métal | None |
| Groupe de produits | 5519 |
| Classe de produits | B: return restricted, please contact your Siemens partner/contact |
| Unité de quantité | 1 Piece |
| Code des produits | 85362090 |
| Famille de produits | RCBOs |
| Poids net (kg) | 2,085 Kg |
| Pays d'origine | Germany |
| LKZ_FDB/ CatalogID | LV10.1 |
| Quantité d'emballage | 1 |
| Dimensions de l'emballage | 165,00 x 270,00 x 95,00 |
| Description du produit | RCBO, 10 kA, 4P, type B, selective, 300 mA, C-Char, In: 125 A, Un AC: 400 V |
| Fréquence (EF005455) | 50 Hz |
| Cycle de vie du produit (PLM) | PM300:Active Product |
| Type de tension (EF000187) | AC |
| Courant nominal (EF000227) | 125 |
| Tension nominale (EF000228) | 400 |
| Profondeur intégrée (EF000218) | 70.0 |
| Règlement sur le contrôle des exportations | AL : N / ECCN : N |
| Degré de pollution (EF002570) | 2 |
| Délai de livraison standard départ usine | 40 Day/Days |
| Surcharge pour matières premières | None |
| Unité de mesure de la taille de l'emballage | MM |
| Courant de défaut nominal (EF002358) | 0.3 |
| Type de courant de fuite (EF002560) | B |
| Catégorie de surtension (EF002569) | 3 |
| Classe de limitation de courant (EF002568) | 3 |
| Caractéristique de libération (EF000889) | C |
| Capacité de courant de surtension (EF002564) | 5.0 |
| Nombre de pôles (total) (EF008618) | 4 |
| Avec dispositif de verrouillage (EF007385) | true |
| Degré de protection (IP) (EF005474) | IP20 |
| Nombre de poteaux protégés (EF005548) | 4 |
| Numéro d'article (Numéro destiné au marché) | 5SU1674-7BK82 |
| Tension d'isolement nominale Ui (EF001366) | 440 |
| Obligation de reprise des DEEE (2012/19/UE) | Yes |
| Caractéristique de déconnexion (EF012587) | - |
| Version anti-déclenchement intempestif (EF009497) | true |
| Commutation simultanée du neutre N (EF005997) | true |
| Largeur en nombre d'espacements modulaires (EF002950) | 11 |
| Température ambiante pendant le fonctionnement (EF007515) | ['-25', '55'] |
| Tension de tenue aux impulsions nominale Uimp (EF011980) | 4.0 |
| Convient pour une installation encastrée (EF006573) | true |
| Groupe de prix spécifique à la région / Groupe de prix du siège social | 13A / 1BD |
| conducteur raccordable à section transversale solide (EF007337) | ['6.0', '50.0'] |
| Section transversale du conducteur connectable multi-filaire (EF007343) | ['6.0', '50.0'] |
| Pouvoir de coupure nominal en court-circuit IEC 60947-2 (EF006065) | 10.0 |
| Conformité aux restrictions relatives aux substances conformément à la directive RoHS | not available |
| Pouvoir de coupure nominal en court-circuit selon la norme EN 61009 (EF012628) | 10.0 |
| Article 33 du règlement REACH : Obligation d’informer en fonction de la liste actuelle des candidats | Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):LeadBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.Lead monoxide (lead ... CAS-No. 1317-36-8 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):Lead monoxide (lead oxide)Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.Silicic acid, lead s... CAS-No. 11120-22-2 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):Silicic acid, lead saltBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.Tris(4-nonylphenyl, branc... > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):Tris(4-nonylphenyl, branched and linear) phosphite (TNPP) with greater than or equal to 0.1% w/w of 4-nonylphenol, branched and linear (4-NP)Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. |
| Pouvoir de coupure nominal en court-circuit Icn selon la norme EN 61009-1 (EF011981) | 10.0 |
Description du produit
FI/LS switches, 10 kA, 4P, type B, selective, 300 mA, Curve C, Input: 125 A, One AC: 400 V. Cancelations and returns limited. Consult conditions.
Caractéristiques principales
- Qualité de niveau industriel
- Conforme RoHS
- Certifié CE
- Garantie d’un an
Détails techniques
Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):
Documents du produit
Fiche technique
Spécifications techniques et données de performance
Manuel d'utilisateur
Guide d'installation et d'utilisation
