En stock Produit phare
DRP-3200-24

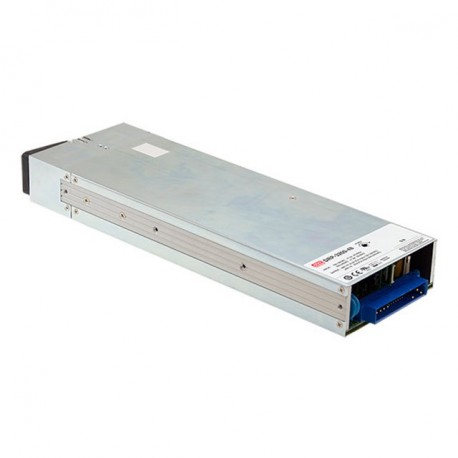

DRP-3200-24 MEANWELL AC-DC Single output Rack front end power supply, Output 24VDC / 133A, 1U low profile, C..
$0.00USD
3640 en stock
Spécifications clés
Ventilateur:Yes
Nom:DRP-3200-24
État:New
Alarmes:Over Temperature, Input Fault, Output OK, Overload
Informations sur le fournisseur
MEANWELL
Produits : 6448
Habituellement expédié sous 2 à 3 jours ouvrables
Qualité garantie
Livraison rapide
Support technique
Spécifications techniques
| Paramètre | Valeur |
|---|---|
| Ventilateur | Yes |
| Nom | DRP-3200-24 |
| État | New |
| Alarmes | Over Temperature, Input Fault, Output OK, Overload |
| Format | 19"Rack |
| Série | DRP-3200 |
| Approbations | EC, EAC, UL |
| Interface | I2C, PMBus |
| Puissance (W) | 3.192,00 |
| Sous-format | 1U |
| Largeur (mm) | 107.00 |
| Hauteur (mm) | 41.00 |
| Entrée CA Max | 264,00 |
| Entrée CA Min | 90,00 |
| Applications | Industrial, Telecommunications |
| Fabricant | MEAN WELL |
| Type de produit | Power supply AC/DC |
| Isolation (V) | 3.000,00 |
| Tension de sortie | 24,00 |
| Puissance de crête (W) | Three thousand one hundred ninety two |
| Connecteur d'entrée | Pin |
| Fréquence d'entrée | 50 Hz, 60 Hz |
| Contexte long | 325.00 |
| Description longue | Power supply for 19" Rack programmable viaITwoCand PMBus.FormatRack 19".Range of universal input90-264vac.47-63Hz.Output voltage24vdc.Adjustable by potentiometer (23,5-30vdc), by external signal 0,4-4,7 Vdc from 50% to 125%or configurable by protocol ITwoCorPMBus.Output intensity133A. Range of output current 0-133A according to demand load. Adjustable by external signal from 20% up to 100%or configurable by protocol ITwoCorPMBus.Power:3192W.Efficiency typical:93,5%.Paralelizable up to 4 units with sharing of active current and diode mosfet protection integrated in the source.Hot Swap. Change in hot.Factor corrector, power>0,97to 230vac at full load.Protocol ITwoC and PMBus.Remote on / off.Auxiliary outputs of 5V 0.3 Aand 12V 0.8 A.2-colored LED indicator the status of the equipment.Protection against short circuit, over load, over voltage and temperature.Working temperature: from-30up+70 ° Cof ambient temperature. Consult the technical data sheet to see the curves of drift.Dimensions (Length x Width x Height) [mm]:325 x 107 x 41.5 years of warranty.Manufacturer: MEAN WELL.The power supplies of the series DRP-3200 are designed to install in the Rack DHP-1UT that supports up to 4 sources DRP-3200.These sources allow you to configure both the output current as the output voltage through RTwoC and PMBus, and optionally via CANBus.Can be connected in parallel up to 4 sources protected by a diode Mosfet for the protection of the current investment. They have a wide range of temperature from -30ºC up to +70ºC. Have a high efficiency and auxiliary outputs of 5V and 12V. The function Hot-Swap or hot-swap allows us to replace any damaged equipment without having to stop the system, or to increase the power at any time. Protection against short circuit, over load, over voltage and temperature.The series DRP-3200 is certified, CE, UL, EAC, UL/en/IEC 62368-1, IN 55032/55024. |
| Connecteur de sortie | Screw-Type |
| Type d'entrée CA | Single-phase |
| Garantie (années) | 5,00 |
| Pays d'origine | Taiwan |
Description du produit
More details
Caractéristiques principales
- Qualité de niveau industriel
- Conforme RoHS
- Certifié CE
- Garantie d’un an
Détails techniques
Power supply for 19" Rack programmable viaITwoCand PMBus.
Documents du produit
Fiche technique
Spécifications techniques et données de performance
Manuel d'utilisateur
Guide d'installation et d'utilisation
