EKD14123

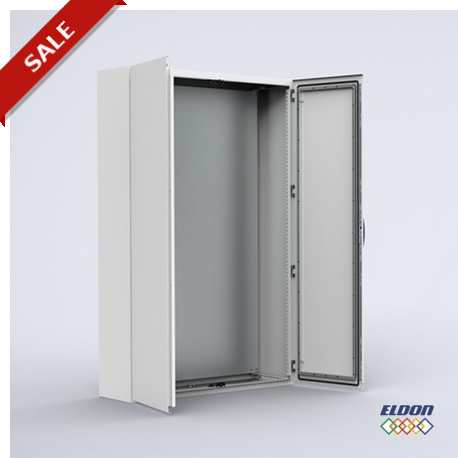

EKD14123 ELDON Floor standing, 1400x1200x300
$0.00USD
4906 en stock
Spécifications clés
Note:With mounting plate
Corps::One piece enclosure body plus welded rear panel. Integrated depth profiles with hole pattern allowing mounting plate adjustment in depth.
Profondeur:300 mm
Porte::Surface mounted with 4 hinges including door frame with 25 mm hole pattern and earthing studs. Standard doors can not be reversed.
Informations sur le fournisseur
ELDON
Produits : 4827
Habituellement expédié sous 2 à 3 jours ouvrables
Qualité garantie
Livraison rapide
Support technique
Spécifications techniques
| Paramètre | Valeur |
|---|---|
| Note | With mounting plate |
| Corps: | One piece enclosure body plus welded rear panel. Integrated depth profiles with hole pattern allowing mounting plate adjustment in depth. |
| Profondeur | 300 mm |
| Porte: | Surface mounted with 4 hinges including door frame with 25 mm hole pattern and earthing studs. Standard doors can not be reversed. |
| Verrouillage: | External espagnolette 4-point locking system. Standard fitted double-bit 3 mm insert. It can be exchanged for standard range of inserts, Euro-cylinder and swing handle. |
| Largeur | 1200 mm |
| Hauteur | 1400 mm |
| Poids | 114,4 Kg |
| Finition: | RAL 7035 structured powder coating. |
| Livraison: | One piece body with fitted doors, bottom plates and mounting plate, including door earthing studs. The enclosure is delivered on a pallet identical to the enclosure width. Mounting plate is supplied on the outside of the enclosure packaging. All the packaging material is recyclable. |
| Mise à la terre : | Can be accomplished by using ECF (Earthing connections for frame). |
| Matériel: | Body and welded rear panel: 1.5 mm mild steel. Door: 2 mm mild steel. Mounting plate: 3 mm galvanized steel. Bottom plates: 1 mm galvanized steel. |
| Protection: | Complies with IP 55 TYPE 12, 13 IK 10. |
| Plaques de fond : | Consists of two sets of two pieces or three (D>300) pieces. |
| Caractéristiques | |
| Plaque de montage : | Double folded and slides into position. Adjustable in depth by steps of 25 mm. Mounting plate is delivered attached on the outside of the enclosure packaging. Fitted inside for 1600 mm wide mounting plates. |
| Largeur de la plaque de montage | 1094 mm |
| Hauteur de la plaque de montage | 1294 mm |
| Profondeur utile maximale de l'enceinte | 255 |
| Profondeur utile maximale du boîtier (mm) | 255 |
Description du produit
More details
Caractéristiques principales
- Qualité de niveau industriel
- Conforme RoHS
- Certifié CE
- Garantie d’un an
Détails techniques
As the double door version to EKS, the EKD offers the same improved design and strength as its smaller brother. With one piece body and welded rear panel ensures superior rigidity, and the front hole pattern guarantees the highest flexibility while maintaining IP 55 protection degree.
