ELGC-300-L-AB

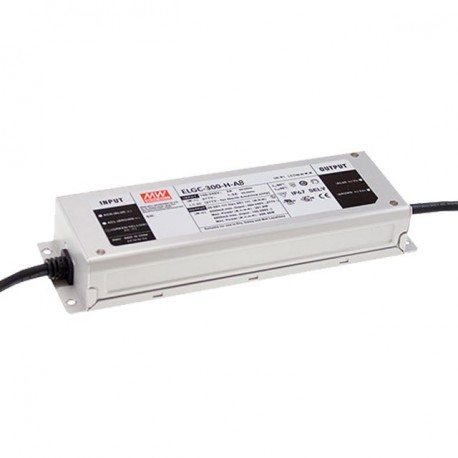

ELGC-300-L-AB MEANWELL AC-DC Single output LED driver Constant Power Mode with built-in PFC, Output 232VDC /..
$0.00USD
4203 en stock
Spécifications clés
Nom:ELGC-300-L-AB
État:New
Format:Box
Série:ELGC-300-AB
Informations sur le fournisseur
MEANWELL
Produits : 6448
Habituellement expédié sous 2 à 3 jours ouvrables
Qualité garantie
Livraison rapide
Support technique
Spécifications techniques
| Paramètre | Valeur |
|---|---|
| Nom | ELGC-300-L-AB |
| État | New |
| Format | Box |
| Série | ELGC-300-AB |
| Atténuation | 0-10V, 1-10V, Resistance 0-100K, PWM Signal 10V |
| Approbations | CCC, CE, EAC, ENEC, UL |
| Puissance (W) | 301,60 |
| Sous-format | IP67 |
| Largeur (mm) | 77.00 |
| Hauteur (mm) | 39.50 |
| Entrée CA Max | 305,00 |
| Entrée CA Min | 100,00 |
| Applications | Lighting, Industrial |
| Fabricant | MEAN WELL |
| Type de produit | LED Driver |
| Isolation (V) | 3.750,00 |
| Puissance de crête (W) | 301.6 |
| Connecteur d'entrée | Cable |
| Fréquence d'entrée | 50 Hz, 60 Hz |
| Contexte long | 246.00 |
| Description longue | LED driver dimmable with constant power.Specially designed for powering LEDs directly in a steady stream.Format in metal box sealedIP67.Input range100-305Vca47-63Hz.Output in constant current1400mA.Adjustable by external potentiometer (650-2000mA).Maximum output power rating of between1300-2000mA.Range of output voltage with current mode constant116 to 232Vccaccording to demand load and according to adjustment of the output current.Power:Eur 301.6 W.Efficiency typical:94.5 per cent.Potentiometer:This model incorporates 1 internal potentiometer that allows us to adjust the power output between 650 and 2000mA.Regulation0% to 100% of the output intensity with a slider0-10V / 1-10V,a PWM signal of 10V with a frequency of 100Hz to 3KHz or resistance of 0 to 100K Ohms. With the regulation we can turn off the output, but we need a regulator 0-10V. Regulators 1-10V not arrive to give 0V do not shut down the output.Input class I with grounding.Factor corrector, power>0,98to 230vac at full load.Operating temperature range of caseTcfrom-40ºCup+90ºC.Dimensions (Length x Width x Height):246 x 77 x 39.5 mm5 years of warranty.Manufacturer: MEAN WELL.The number ELGC-300 are LED drivers with constant power. Give an output constant current which can be adjusted by the potentiometer and the range of output voltage varies according to the setting of the current. In this way we can get the maximum power output while to adjust to different current values. The sources of constant power offer a wide operating range (voltage + current), allowing to use one model for different applications with different requirements of voltage and current.This source is designed to work directly with leds (plates LED or COBs), not with LED strips. Must be equipment that is fed in a steady stream.This source works on a constant current when we connect the LEDs directly to have a voltage within the range of output voltage mode constant current and a working current equal to the output current.In this version AB, the output current can be adjusted byknob that incorporates the source itself,in addition to having regulation 0-10V/1-10V, 10V PWM, or resistance.The series ELGC are LED drivers, class I grounded.With metal housing, waterproof to IP67. The number ELGC-300 has a high efficiency designed for port applications, stage lighting, spaces for horticulture, LED lamps for fishing, lighting of stadiums, etc, in compliance with the requirements of security at the global level for lighting.Can be adjusted by regulatory assets or liabilities0-10Vor1-10V, signal 10V PWM of 100Hz to 3KHz or by resistance of 0 to 100KOhmios. Does not work with dimmers Triac dimmer cutting phase.(Not to be confused with regulators TRIACs, cutting phase. This driver cannot be regular with a Triac).With potentiometers assets that you can give 0V to shut down the output without the need of a switch. Dimmers 1-10V we can only reach 10% of regulation without shutting down the output. If you want to regulate the LED strips we recommend the series PWM.Compatible with any regulator 0-10V or 1-10V-market both assets and liabilities. Some compatible models tested are:MEAN WELL DAP-04S01 (compatible with any push button normally open).SIMON: 75317BJC: 5TC8 425LEGRAND: 0784 04ABB- "NIESSEN": N2260.9SIEMENS: 5TC8424EFAPEL: Model 21210LED BOX: Model LD1160188OSRAM: Model DIM MCUJUNG: Model 240-10We can put about 20 sources for each regulator. The maximum distance is 100 meters between the regulator and the driver. |
| Connecteur de sortie | Cable |
| Type d'entrée CA | Single-phase |
| Garantie (années) | 5,00 |
| Pays d'origine | China |
| Courant de sortie mA | 650, 700, 750, 800, 850, 900, 950, 1000, 1050, 1100, 1150, 1200, 1250, 1300, 1350, 1400, 1450, 1500, 1550, 1600, 1650, 1700, 1750, 1800, 1850, 1900, 1950, 2000 |
| Intensité de sortie minimale (mA) | 650,00 |
| Intensité de sortie maximale (mA) | 2.000,00 |
Description du produit
More details
Caractéristiques principales
- Qualité de niveau industriel
- Conforme RoHS
- Certifié CE
- Garantie d’un an
Détails techniques
LED driver dimmable with constant power.
