ELN-30-15D

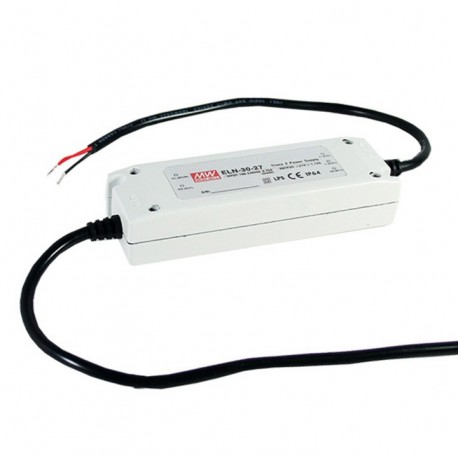

ELN-30-15D MEANWELL AC-DC Single output LED driver Mix mode (CV+CC), Output 15VDC / 2A, Dimming with 1-10VDC
$0.00USD
3712 en stock
Spécifications clés
Nom:ELN-30-15D
État:Do not Use for New Designs
Format:Box
Atténuation:1-10V
Informations sur le fournisseur
MEANWELL
Produits : 6448
Habituellement expédié sous 2 à 3 jours ouvrables
Qualité garantie
Livraison rapide
Support technique
Spécifications techniques
| Paramètre | Valeur |
|---|---|
| Nom | ELN-30-15D |
| État | Do not Use for New Designs |
| Format | Box |
| Atténuation | 1-10V |
| Approbations | CE, UL |
| Puissance (W) | 30,00 |
| Sous-format | IP64 |
| Largeur (mm) | 47.00 |
| Hauteur (mm) | 30.00 |
| Entrée CA Max | 264,00 |
| Entrée CA Min | 90,00 |
| Applications | Industrial, Telecommunications |
| Fabricant | MEAN WELL |
| Type de produit | LED Driver |
| Isolation (V) | 3.000,00 |
| Puissance de crête (W) | Thirty |
| Connecteur d'entrée | Cable |
| Fréquence d'entrée | 50 Hz, 60 Hz |
| Contexte long | 145.00 |
| Description longue | LED driver.Specially designed for powering LEDs directly in a steady stream.Format in plastic boxIP64.Input range90-264vac47-63Hz.Output in constant current2A.Range of output voltage with current mode constant3 to 15vdcaccording to demand load.Power:30W.Eficienciatípica:82%.Regulationfrom 10% to 100% of the output intensity with a dimmer 1-10V. With the regulation we can not turn off the output, we can only go down to 10%.Input class II without grounding.Operating temperature range of caseTcfrom-20ºCup+60ºC.Dimensions (Length x Width x Height):One hundred forty fivex 47 x 30mm.2 years of warranty.Manufacturer: MEAN WELL.This source is designed to work directly with leds (plates LED or COBs), not with LED strips. Must be equipment that is fed in a steady stream.This source can operate in either Constant Current when we connect the LEDs directly to have a voltage within the Range of Output Voltage mode Constant Current and a working current equal to the output current.You can also work in voltage mode constant giving a fixed voltage of 15V if load is powered at constant voltage and does not overcome the maximum output power.With plastic housing, designed for applications of LED-lighting and signalling mobile. Suitable for interior lighting and electronic displays.Can be adjusted by regulatory assets or liabilities1-10V.Compatible with any dimmer 1-10V-market both assets and liabilities. Does not work with dimmers Triac dimmer cutting phase.Some compatible models tested are:MEAN WELL DAP-04S01 (compatible with any push button normally open)SIMON: 75317BJC: 5TC8 425LEGRAND: 0784 04ABB- "NIESSEN": N2260.9SIEMENS: 5TC8424EFAPEL: Model 21210LED BOX: Model LD1160188OSRAM: Model DIM MCUJUNG: Model 240-10We can put about 20 sources for each regulator. The maximum distance is 100 meters between the regulator and the driver. |
| Connecteur de sortie | Cable |
| Type d'entrée CA | Single-phase |
| Garantie (années) | 2,00 |
| Pays d'origine | China |
| Courant de sortie mA | Two thousand |
| Intensité de sortie minimale (mA) | 2.000,00 |
| Intensité de sortie maximale (mA) | 2.000,00 |
Description du produit
More details
Caractéristiques principales
- Qualité de niveau industriel
- Conforme RoHS
- Certifié CE
- Garantie d’un an
Détails techniques
LED driver.
