ERPF-400-12

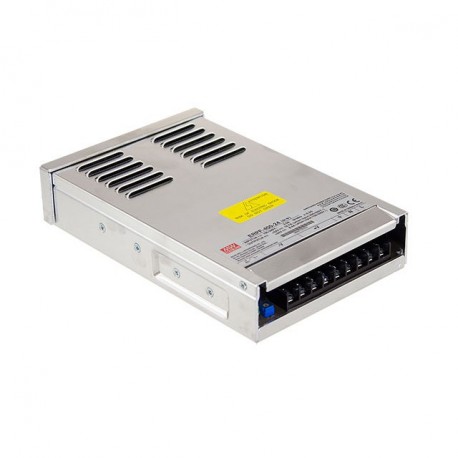

ERPF-400-12 MEANWELL AC-DC Single output power supply with PFC, Output 12VDC / 30A, Input range 90-264VAC
$0.00USD
3517 en stock
Spécifications clés
Nom:ERPF-400-12
État:New
Format:Box
Série:ERPF-400
Informations sur le fournisseur
MEANWELL
Produits : 6448
Habituellement expédié sous 2 à 3 jours ouvrables
Qualité garantie
Livraison rapide
Support technique
Spécifications techniques
| Paramètre | Valeur |
|---|---|
| Nom | ERPF-400-12 |
| État | New |
| Format | Box |
| Série | ERPF-400 |
| Approbations | CCC, CE, EAC, UL |
| Puissance (W) | 360,00 |
| Sous-format | Grid |
| Largeur (mm) | 130.00 |
| Hauteur (mm) | 48.00 |
| Entrée CA Max | 264,00 |
| Entrée CA Min | 90,00 |
| Applications | Lighting, Industrial |
| Fabricant | MEAN WELL |
| Type de produit | Power supply AC/DC |
| Isolation (V) | 3.000,00 |
| Tension de sortie | 12,00 |
| Puissance de crête (W) | Three hundred sixty |
| Connecteur d'entrée | Screw-Type |
| Fréquence d'entrée | 50 Hz, 60 Hz |
| Contexte long | 220.40 |
| Description longue | Switching power supply for LED panels.Splash proof water in vertical installation.Format in metal box semi-encapsulated.Range of universal input90-264vac47-63Hz.Output voltage12vdc. Adjustable by potentiometer (10,8-13,2 Vdc).Output intensity30A. Range of output current 0-30A according to demand load.Power:360W.Efficiency typical:89%.Input class I with grounding.Factor corrector, power>0,95to 230vac at full load.Low leakage current<0.1 mA.LED power indicator.Protection against short circuit, over load, over voltage and temperature.Design splash proof from water and dust.Operating temperature range from-30up+60ºC.Dimensions (Length x Width x Height):220,4 x 130 x 48mm.3 years of warranty.Manufacturer: MEAN WELL.The series ERPF are sources with a metal case of aluminum especially designed for panels of LED signage. With design semi-encapsulated splash proof from water and dust. Prepared for installation in vertical. It has a high efficiency and energy saving.Support input voltages of 300Vca for 5 seconds and use components of the highest reliability. Have a power LED. Havemultiple protections (short circuit, overload, over voltage and temperature).The series ERPF these sources are robust and reliable, with high efficiency and economic. Designed for all types of LED panels. |
| Connecteur de sortie | Screw-Type |
| Type d'entrée CA | Single-phase |
| Garantie (années) | 3,00 |
| Pays d'origine | China |
Description du produit
More details
Caractéristiques principales
- Qualité de niveau industriel
- Conforme RoHS
- Certifié CE
- Garantie d’un an
Détails techniques
Switching power supply for LED panels.
Documents du produit
Fiche technique
Spécifications techniques et données de performance
Manuel d'utilisateur
Guide d'installation et d'utilisation
