HBG-100-24AB

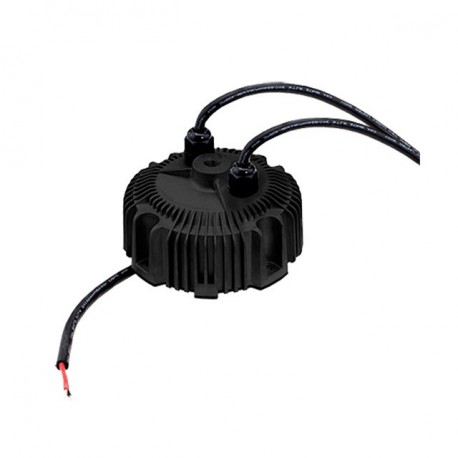

HBG-100-24AB MEANWELL AC-DC Single output LED driver Constant current (CC) with built-in PFC, Output 24VDC /..
$0.00USD
3458 en stock
Spécifications clés
Nom:HBG-100-24AB
État:New
Format:Box
Série:HBG-100-AB
Informations sur le fournisseur
MEANWELL
Produits : 6448
Habituellement expédié sous 2 à 3 jours ouvrables
Qualité garantie
Livraison rapide
Support technique
Spécifications techniques
| Paramètre | Valeur |
|---|---|
| Nom | HBG-100-24AB |
| État | New |
| Format | Box |
| Série | HBG-100-AB |
| Atténuation | 1-10V, Resistance 0-100K, PWM Signal 10V |
| Approbations | CCC, CE, EAC, ENEC, UL |
| Puissance (W) | 96,00 |
| Sous-format | IP65 |
| Largeur (mm) | 130.00 |
| Hauteur (mm) | 66.50 |
| Entrée CA Max | 305,00 |
| Entrée CA Min | 90,00 |
| Applications | Lighting |
| Fabricant | MEAN WELL |
| Type de produit | LED Driver |
| Isolation (V) | 3.750,00 |
| Puissance de crête (W) | Ninety six |
| Connecteur d'entrée | Cable |
| Fréquence d'entrée | 50 Hz, 60 Hz |
| Contexte long | 130.00 |
| Description longue | LED driver dimmable.Specially designed for powering LEDs directly in a steady stream.Format circular plastic patentedIP65.Input range90-305Vca47-63Hz.Output in constant current4A.Adjustable by external potentiometer (2,4-4A).Range of output voltage with current mode constant14.4 to 24vdcaccording to demand load.Power:96W.Efficiency typical:Total of 90.5%.Potentiometer:This model incorporates external potentiometer that allows us to regulate the maximum output current.Regulationfrom 10% to 100% of the output intensity with a slider1-10V, a PWM signal of 10V with a frequency of 100Hz to 3KHz or resistance of 0 to 100K Ohms. With the regulation we can not turn off the output, we can only go down to 10%.Input class I with grounding.Factor corrector, power>0.96to 230vac at full load.Operating temperature range of caseTcfrom-40ºCup+85ºC.Dimensions (Diameter x Height):130 x 66,5 mm5 years of warranty.Manufacturer: MEAN WELL.This source is designed to work directly with leds (plates LED or COBs), not with LED strips. Must be equipment that is fed in a steady stream.This source works on a constant current when we connect the LEDs directly to have a voltage within the range of output voltage mode constant current and a working current equal to the output current. In this version AB, the output current can be adjusted byexternal potentiometerlocated in the housing of the source, in additionhave regulation 1-10V, 10V PWM, or resistance.With cover, round, plastic IP65. The series HBG is specially designed for the bells and LED spotlights, scenarios, and bays. Intended for applications in dry, damp or wet, both in exterior and in interior. Input class I with grounding.Can be adjusted by regulatory assets or liabilities1-10V, signal 10V PWM of 100Hz to 3KHz or by resistance of 0 to 100KOhmios. Does not work with dimmers Triac dimmer cutting phase.(Not to be confused with regulators TRIACs, cutting phase. This driver cannot be regular with a Triac).Dimmers 1-10V we can only reach 10% of regulation without shutting down the output. If you want to regulate the LED strips we recommend the series PWM.Compatible with any dimmer 1-10V-market both assets and liabilities. Some compatible models tested are:MEAN WELL DAP-04S01 (compatible with any push button normally open).SIMON: 75317BJC: 5TC8 425LEGRAND: 0784 04ABB- "NIESSEN": N2260.9SIEMENS: 5TC8424EFAPEL: Model 21210LED BOX: Model LD1160188OSRAM: Model DIM MCUJUNG: Model 240-10We can put about 20 sources for each regulator. The maximum distance is 100 meters between the regulator and the driver. |
| Connecteur de sortie | Cable |
| Type d'entrée CA | Single-phase |
| Garantie (années) | 5,00 |
| Pays d'origine | China |
| Courant de sortie mA | 2400, 2500, 2600, 2700, 2800, 2900, 3000, 3100, 3200, 3300, 3400, 3500, 4000 |
| Intensité de sortie minimale (mA) | 2.400,00 |
| Intensité de sortie maximale (mA) | 4.000,00 |
Description du produit
More details
Caractéristiques principales
- Qualité de niveau industriel
- Conforme RoHS
- Certifié CE
- Garantie d’un an
Détails techniques
LED driver dimmable.
