HC-M-01-AT-F-40

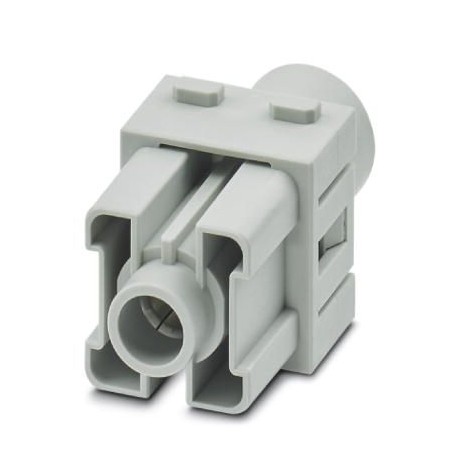

HC-M-01-AT-F-40 1417379 PHOENIX CONTACT Contact insert module
$0.00USD
4141 en stock
Spécifications clés
GTIN:4055626112602
Clé de commande:1417379
page du catalogue:Page 563 (C-2-2017)
Unité d'emballage:2 pc
Informations sur le fournisseur
Produits : 0
Habituellement expédié sous 2 à 3 jours ouvrables
Qualité garantie
Livraison rapide
Support technique
Spécifications techniques
| Paramètre | Valeur |
|---|---|
| GTIN | 4055626112602 |
| Clé de commande | 1417379 |
| page du catalogue | Page 563 (C-2-2017) |
| Unité d'emballage | 2 pc |
| Pays d'origine | PL (Poland) |
| numéro de tarif douanier | 85366990 |
| (Conditions ambiantes) | 16 mm (40 mm²) |
| quantité minimale de commande | 2 pc |
| Matériel de contact (Général) | Copper alloy |
| Rated current (Dimensions) | 200 A |
| Largeur (Données commerciales clés) | 34.2 mm |
| (Normes et réglementations) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Taille (Données commerciales clés) | 60 mm |
| Longueur (Données commerciales clés) | 29.4 mm |
| (Caractéristiques mécaniques) | The axial screw connection must be established using a 5 mm Allen key (for stranded conductors only) |
| Connection profile (Dimensions) | 1 |
| Rated surge voltage (Dimensions) | 8 kV |
| Note (Mechanical characteristics) | For HEAVYCON HC-B6 to B48 housing (housing height: min. 72 mm), HC-M-B..-MF-... module carrier frame required, axial connection for 5 mm Allen key |
| Couleur (Caractéristiques mécaniques) | light gray |
| Matériau support de contact (Général) | PC |
| Matériau de la surface de contact (Généralités) | Ag |
| Rated voltage (III/3) (Dimensions) | 1000 V |
| Series (Mechanical characteristics) | HC-M-HS |
| Poids par pièce (emballage exclu) | 61.400 g |
| Contact diameter (Ambient conditions) | 9.5 mm |
| Hexagonal socket (Ambient conditions) | WAF 5 |
| Normes et réglementations RoHS en Chine | Environmentally Friendly Use Period = 50 |
| Couple de serrage (conditions ambiantes) | 8 Nm (25 mm² ... 35 mm²) |
| Connection (Mechanical characteristics) | Note regarding axial connection technology:Only for stranded wires. The specified conductor cross sections refer to the geometric cross section of the cable used.Cables with a geometric cross section which deviates significantly from the nominal cable cross section must be checked before use.The axial connection technology connection space is designed for fine strand cables according to VDE 0295 Class 5. Deviating cable structures (e.g., Class 6 cables) must be checked before use.Assembly instructionsBefore assembly, ensure that the tapered screw is fully loosened (chamber is open). Cables must not be twisted. The wires must be pushed into the contact chamber as far as they will go (until the insulation touches the contact). Hold the wires in position and tighten using an Allen key. The used wire end must be cut off before reconnection. The terminal screw must only be retightened once to prevent the litz wires from breaking. To prevent damage to the contact, the wire/cable must be mechanically held at an appropriate distance from the connection point (e.g., when used in a plate cut out). For notes on correct execution, see DIN VDE 0100-520:2003-06. Unused connections must be tightened with maximum torque. |
| Contact type (Mechanical characteristics) | turned |
| Minimum housing height (Ambient conditions) | 72 mm |
| Section transversale du conducteur (conditions ambiantes) | 25 mm² ... 70 mm² (The cross section specification refers to the geometric cross section of the cable used) |
| Connection method (Mechanical characteristics) | Axial screw connection |
| Degré de pollution (Caractéristiques mécaniques) | 3 |
| Cycles d'insertion/retrait (conditions ambiantes) | ≥ 500 |
| Connection cross section AWG (Ambient conditions) | 10 ... |
| Catégorie de surtension (Caractéristiques mécaniques) | III |
| Assembly instructions (Mechanical characteristics) | To ensure correct use, installation in housing with IP54 protection or better is required |
| Number of module slots (Mechanical characteristics) | 2 |
| Indice d'inflammabilité selon la norme UL 94 (Données sur les matériaux) | V0 |
| Diamètre du fil, isolation comprise (conditions ambiantes) | 12 mm (25 mm²) |
| Ambient temperature (operation) (Electrical characteristics) | -40 °C ... 125 °C |
| Stripping length of the individual wire (Ambient conditions) | 16 mm |
| Indice d'inflammabilité selon la norme UL 94 (Caractéristiques mécaniques) | V0 |
Description du produit
Contact insert module, number of poles: 1, power contacts: 1, control contacts: 0, Female, Axial screw connection, 1000 V, 200 A, 6 mm² ... 70 mm², application: Power
