En stock Produit phare
HLG-240H-C1400A

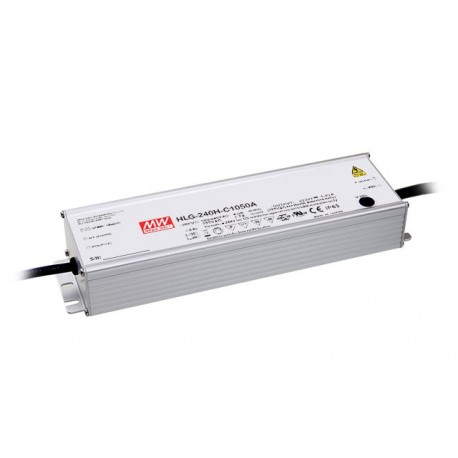

HLG-240H-C1400A MEANWELL AC-DC Single output LED driver Constant Current (CC) with built-in PFC, Output 179V..
$0.00USD
3806 en stock
Spécifications clés
Nom:HLG-240H-C1400A
État:Recommended Model
Format:Box
Série:HLG-240H-C-
Informations sur le fournisseur
MEANWELL
Produits : 6448
Habituellement expédié sous 2 à 3 jours ouvrables
Qualité garantie
Livraison rapide
Support technique
Spécifications techniques
| Paramètre | Valeur |
|---|---|
| Nom | HLG-240H-C1400A |
| État | Recommended Model |
| Format | Box |
| Série | HLG-240H-C- |
| Approbations | CCC, CE, ENEC, RCM, UL |
| Puissance (W) | 250,60 |
| Sous-format | IP65 |
| Largeur (mm) | 68.00 |
| Hauteur (mm) | 38.80 |
| Entrée CA Max | 305,00 |
| Entrée CA Min | 90,00 |
| Applications | Lighting |
| Fabricant | MEAN WELL |
| Type de produit | LED Driver |
| Isolation (V) | 3.750,00 |
| Puissance de crête (W) | 250.6 |
| Connecteur d'entrée | Cable |
| Fréquence d'entrée | 50 Hz, 60 Hz |
| Contexte long | 244.20 |
| Description longue | LED driver.Specially designed for powering LEDs directly in a steady stream.Format in metal boxIP65.Input range90-305Vca47-63Hz.Output in constant current1400mA.Adjustable by external potentiometer (700-1400mA).Range of output voltage with current mode constant89 179ccaccording to demand load.Power:250,6 W.Efficiency typical:94%.Potentiometer:This model incorporates 1 external potentiometer that allows us to regulate the maximum output current.Input class I with grounding.Factor corrector, power>0,95to 230vac at full load.Operating temperature range of caseTcfrom-40ºCup+70ºC.Dimensions (Length x Width x Height):244,2 x 68 x 38,8 mm7 years of warranty.Manufacturer: MEAN WELLThis source can work directly with leds (plates LED or COBs), not with LED strips. Must be equipment that is fed in a steady stream.This source works on a constant current when we connect the LEDs directly to have a voltage within the range of output voltage mode constant current and a working current equal to the output current. The output current can be adjusted byexternal potentiometerlocated in the housing of the source.The series HLG are LED drivers, class I grounded.With metal housing IP65. The series HLG has a high efficiency designed for applications of public lighting, architectural, exterior, interior or any lighting application LED needs a driver of high quality. Approved HL Class I Division 2 for ex-zones in the US. Suitable for LED lighting or LED displays. Complies with the requirements of security at the global level for lighting. |
| Connecteur de sortie | Cable |
| Type d'entrée CA | Single-phase |
| Garantie (années) | 7,00 |
| Pays d'origine | China |
| Courant de sortie mA | 700, 750, 800, 850, 900, 950, 1000, 1050, 1100, 1150, 1200, 1250, 1300, 1350, 1400 |
| Intensité de sortie minimale (mA) | 700,00 |
| Intensité de sortie maximale (mA) | 1.400,00 |
Description du produit
More details
Caractéristiques principales
- Qualité de niveau industriel
- Conforme RoHS
- Certifié CE
- Garantie d’un an
Détails techniques
LED driver.
Documents du produit
Fiche technique
Spécifications techniques et données de performance
Manuel d'utilisateur
Guide d'installation et d'utilisation
