En stock Produit phare

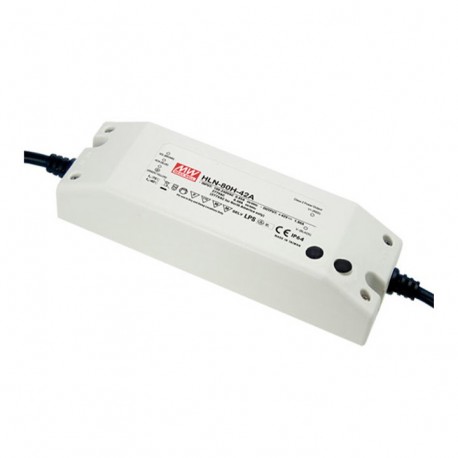

HLN-80H-36A
HLN-80H-36A MEANWELL AC-DC Single output LED driver Mix mode (CV+CC), Output 36VDC / 2.3A, IP64, cable outpu..
$0.00USD
3477 en stock
Spécifications clés
Nom:HLN-80H-36A
État:Do not Use for New Designs
Format:Box
Série:HLN-80H
Informations sur le fournisseur
MEANWELL
Produits : 6448
Habituellement expédié sous 2 à 3 jours ouvrables
Qualité garantie
Livraison rapide
Support technique
Spécifications techniques
| Paramètre | Valeur |
|---|---|
| Nom | HLN-80H-36A |
| État | Do not Use for New Designs |
| Format | Box |
| Série | HLN-80H |
| Atténuation | 1-10V, Resistance 0-100K, PWM Signal 10V |
| Approbations | CE, PSE, UL |
| Puissance (W) | 82,80 |
| Sous-format | IP64 |
| Largeur (mm) | 61.50 |
| Hauteur (mm) | 35.00 |
| Entrée CA Max | 305,00 |
| Entrée CA Min | 90,00 |
| Applications | Lighting |
| Fabricant | MEAN WELL |
| Type de produit | LED Driver |
| Isolation (V) | 3.750,00 |
| Puissance de crête (W) | 82.8 |
| Connecteur d'entrée | Cable |
| Fréquence d'entrée | 50 Hz, 60 Hz |
| Contexte long | 181.00 |
| Description longue | LED driver.Specially designed for powering LEDs directly in a steady stream.Format in plastic boxIP64.Input range90-305Vca47-63Hz.Output in constant current2,3 A.Adjustable by external potentiometer (1,38-2,3 A).Range of output voltage with current mode constant21.6 to 36Vccaccording to demade the load.The output voltage in voltage mode constant36Vcc.Adjustable by external potentiometer (33-40Vcc).Power:82,8 W.Efficiency typical:91%.Potentiometers:This model incorporates 2 external potentiometers that allows us to regulate the output voltage and the maximum output current.Input class I with grounding.Factor corrector, power>0,96to 230vac at full load.Operating temperature range of caseTcfrom-40ºCup+50ºC.Dimensions (Length x Width x Height) [mm]:181 x 61.5 x 35.3 years of warranty.Manufacturer: MEAN WELL.The series HLN are LED Drvers designed to work directly with leds (plates LED or COBs), not with LED strips. Must be equipment that is fed in a steady stream.This source can operate in either Constant Current when we connect the LEDs directly to have a voltage within the Range of Output Voltage mode Constant Current and a working current equal to the output current. The output current and the output voltage can be adjusted byexternal potentiometerslocated in the housing of the source.You can also work in voltage mode constant giving a fixed voltage of 36V if the load is powered at constant voltage and does not overcome the maximum output power.With plastic housing is isolated. A small and compact size makes it have high reliability and low cost. These sources are suitable for LED lighting and signalling mobile installations of interior and exterior. Suitable for wet environments and wet conditions. Complies with the requirements of security at the global level for lighting. |
| Connecteur de sortie | Cable |
| Type d'entrée CA | Single-phase |
| Garantie (années) | 3,00 |
| Pays d'origine | China |
| Courant de sortie mA | 1350, 1400, 1450, 1500, 1550, 1600, 1650, 1700, 1750, 1800, 1850, 1900, 1950, 2000, 2050, 2100, 2200, 2300 |
| Intensité de sortie minimale (mA) | 1.380,00 |
| Intensité de sortie maximale (mA) | 2.300,00 |
Description du produit
More details
Caractéristiques principales
- Qualité de niveau industriel
- Conforme RoHS
- Certifié CE
- Garantie d’un an
Détails techniques
LED driver.
