LDC-35

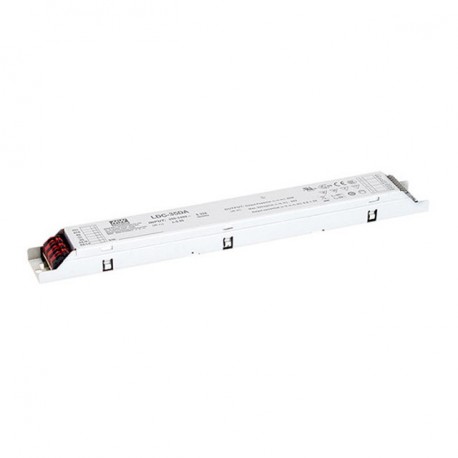

LDC-35 MEANWELL AC-DC Linear LED driver Constant Power Mode, Output 56VDC / 1A, Metal housing design
$0.00USD
4249 en stock
Spécifications clés
Nom:LDC-35
État:New
Format:Box
Série:LDC-35
Informations sur le fournisseur
MEANWELL
Produits : 6448
Habituellement expédié sous 2 à 3 jours ouvrables
Qualité garantie
Livraison rapide
Support technique
Spécifications techniques
| Paramètre | Valeur |
|---|---|
| Nom | LDC-35 |
| État | New |
| Format | Box |
| Série | LDC-35 |
| Approbations | CCC, CE, EAC, ENEC, MM, UL |
| Puissance (W) | 35,00 |
| Sous-format | Ballast |
| Largeur (mm) | 30.00 |
| Hauteur (mm) | 21.00 |
| Entrée CA Max | 295,00 |
| Entrée CA Min | 180,00 |
| Applications | Lighting |
| Fabricant | MEAN WELL |
| Type de produit | LED Driver |
| Isolation (V) | 3.750,00 |
| Puissance de crête (W) | Thirty five |
| Connecteur d'entrée | Quick Connector |
| Fréquence d'entrée | 50 Hz, 60 Hz |
| Contexte long | 280.00 |
| Description longue | LED driver with constant power output.Specially designed for powering LEDs directly in a steady stream.Format metal box type ballastIP20.Input range180-295Vca47-63Hz.Range of output constant current300-1000mA.Adjustable by resistor (300-1000mA).Maximum output power rating of between625-1000mA.Range of output voltage with current mode constant27 to 56Vccaccording to demand load and according to adjustment of the output current.Power:35W.Efficiency typical:88%.Input class I with grounding.Factor corrector, power>0,95to 230vac at load higher than 50%.Low ripple current <3%, no flash.Harmonic distortionTHD <10%with loads higher than 50%.Input of temperature sensor NTC.Consumption without load <0.5 W.Operating temperature range of caseTcfrom-25ºCup+80ºC.Dimensions (Length x Width x Height):280 x 30 x 21mm.5 years of warranty.Manufacturer: MEAN WELL.The LDC-series-35 are LED drivers with constant power. Give an output constant current which can be adjusted by an external resistor connected between the terminal IADJ. This allows us to adjust the output current between 300 and 1000mA. The range of output voltage is adjusted to get maximum power between 625 and 1000mA. In this way we can get the maximum power output while to adjust to different current values. The sources of constant power offer a wide operating range (voltage + current), allowing to use one model for different applications with different requirements of voltage and current. Input of temperature sensor using an NTC, which allows us to reduce the output current and protect the LEDs in case of excessive warming in the same (sensor not included).Have a minimum ripple current thus providing light of the highest quality without flicker. Also have a small harmonic distortion in order to avoid creating problems in the electrical network, and a high correction factor of power.This source is designed to work directly with leds (plates LED or COBs), not with LED strips. Must be equipment that is fed in a steady stream.This source works on a constant current when we connect the LEDs directly to have a voltage within the range of output voltage mode constant current and a working current equal to the output current. The output current can be adjusted via an external resistor.The LDC-series-35 are LED drivers, class I with grounding and output power limited class 2.With metal housing type ballast IP20, LDC-series-35 has a high efficiency designed for applications of panels of LED lighting, indoor lighting and due to its elongated shape in the form of ballast, are ideal for LED lighting online.They have all kinds of protections against over loads, short circuit, over output voltage, temperature of the driver and the own Led.Are certified CE, ENEC, UL, MM, CCC for use in a multitude of applications and countries. |
| Connecteur de sortie | Quick Connector |
| Type d'entrée CA | Single-phase |
| Garantie (années) | 5,00 |
| Pays d'origine | China |
| Courant de sortie mA | 300, 350, 400, 450, 500, 550, 600, 650, 700, 750, 800, 850, 900, 950, 1000 |
| Intensité de sortie minimale (mA) | 300,00 |
| Intensité de sortie maximale (mA) | 1.000,00 |
Description du produit
More details
Caractéristiques principales
- Qualité de niveau industriel
- Conforme RoHS
- Certifié CE
- Garantie d’un an
Détails techniques
LED driver with constant power output.
