En stock Produit phare

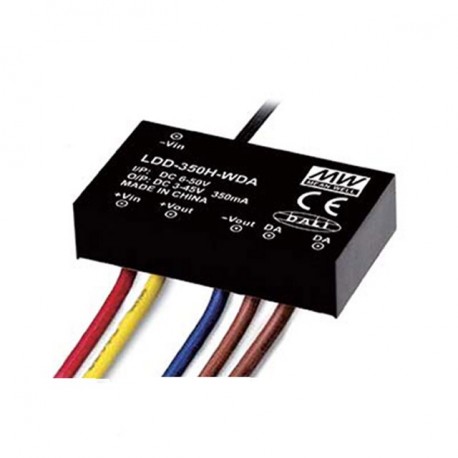

LDD-1050H-WDA
LDD-1050H-WDA MEANWELL DC-DC Step down LED driver Constant Current (CC), Input 6-50VDC, Output 1.05A / 3-45V..
$0.00USD
4966 en stock
Spécifications clés
Nom:LDD-1050H-WDA
État:New
Format:Box
Série:LDD-H-WDA
Informations sur le fournisseur
MEANWELL
Produits : 6448
Habituellement expédié sous 2 à 3 jours ouvrables
Qualité garantie
Livraison rapide
Support technique
Spécifications techniques
| Paramètre | Valeur |
|---|---|
| Nom | LDD-1050H-WDA |
| État | New |
| Format | Box |
| Série | LDD-H-WDA |
| Atténuation | Analog, DALI, PWM Signal 10V |
| Approbations | EC |
| Puissance (W) | 47,20 |
| Sous-format | Encapsulated |
| Largeur (mm) | 23.50 |
| Hauteur (mm) | 10.10 |
| Applications | Lighting, Solar |
| Fabricant | MEAN WELL |
| Type de produit | LED Driver |
| Puissance de crête (W) | 47.2 |
| Plage d'entrée CC | 6, 6,5, 7, 8, 8,1, 8,3, 8,4, 9, 9,2, 9,9, 10, 10,5, 10,8, 12, 13,2, 13,5, 14, 14,4, 15, 16,2, 16,5, 16,8, 18, 19, 20,4, 21, 21,6, 22,5, 24, 25,2, 26,4, 28, 28,8, 30, 31,2, 32, 32,4, 33,6, 35, 36, 36,4, 38,4, 40, 43, 46,8, 50 |
| Connecteur d'entrée | Cable |
| Contexte long | 40.60 |
| Description longue | LED driver input and continuous output in a steady stream.Specially designed for applications of solar street lights powered from battery.Format in box with connection cables.IP65.Input rangeSix-50Vcc.Output in constant current1050mA.Range of output voltage with current mode constantThreeto 45Vccaccording to demand load.The output voltage must be at least 3V lower than the input voltage. Regulator Buck (Vout < Vin).Power:47,2 W.Efficiency typical:95%.Regulation DALI0% to 100% of the output intensity. Certificate to DALI.Regulation0% to 100% of the output intensity with a PWM signal or analog from 0.1 to 5V. (Optional).Consumption without load 1mA in power-off mode.Operating temperature range of caseTcfrom-40ºCup+85ºC.Dimensions (Length x Width x Height):Age, 40.6 x 23.5 x 10,1 mm.3 years of warranty.Manufacturer: MEAN WELL.The series LDD-H-WDA are current regulators designed to feed the leds from a battery or dc voltage. These teams have regulation DALI, compatible with any system DALI. Also can be regular (optional) using a PWM signal or analog signal.This series are voltage reducers (designed for buck or step-down) that reduce the input voltage to an output voltage lower while keeping the output current constant. It is very important to consider that the supply voltage of the leds must be at least 3V lower than the supply voltage. |
| Connecteur de sortie | Cable |
| Garantie (années) | 3,00 |
| Pays d'origine | Taiwan |
| Courant de sortie mA | One thousand fifty |
Description du produit
More details
Caractéristiques principales
- Qualité de niveau industriel
- Conforme RoHS
- Certifié CE
- Garantie d’un an
Détails techniques
LED driver input and continuous output in a steady stream.
Documents du produit
Fiche technique
Spécifications techniques et données de performance
Manuel d'utilisateur
Guide d'installation et d'utilisation
