MSMD082P1S

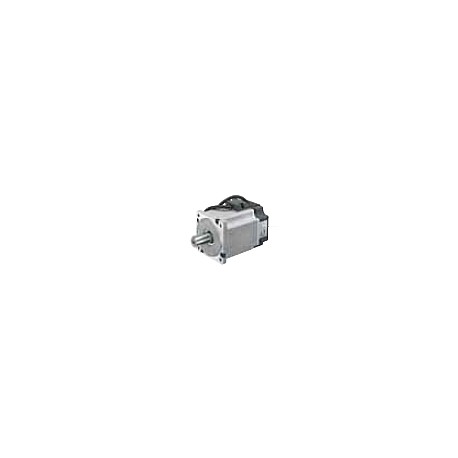

MSMD082P1S PANASONIC Servo Motor MINAS A4 series, 750W, 2.4Nm, incremental encoder, key shaft
$0.00USD
3973 en stock
Spécifications clés
Article:Specifications
Taper:Low inertia
Arbre:Key-way, Shaft end, Center tap
Remarque:1. About Regenerative brake frequencythe frequency of the motor's stops from the rated speed with deceleration without load.. If the load is connected, frequency will be defines as 1/(m+1), where m=load moment of inertia/rotor moment of inertia.・ When the motor speed exceeds the rated speed, regenerative brake frequency is in inverse proportion to thesquare of (running speed/rated speed).・Power supply voltage is AC115 V（at 100 V of the main voltage）、AC230 V（at 200 V of the main voltage).If the supply voltage fluctuates, frequency is in inverse proportion to the square of (Running supply voltage)relative to the value in the table.・When regeneration occurs continuously such cases as running speed frequently changes or vertical feeding, consult us ora dealer.2. About unlimited regenerative brake frequencyIf the effective torque is within the rated torque, there is no limit in generative brake.3. About recommended moment of inertia ratio of the load and the rotorConsult us or a dealer if the load moment of inertia exceeds the specified value.For details, check the catalog and instruction manuals.
Informations sur le fournisseur
PANASONIC
Produits : 4316
Habituellement expédié sous 2 à 3 jours ouvrables
Qualité garantie
Livraison rapide
Support technique
Spécifications techniques
| Paramètre | Valeur |
|---|---|
| Article | Specifications |
| Taper | Low inertia |
| Arbre | Key-way, Shaft end, Center tap |
| Remarque | 1. About Regenerative brake frequencythe frequency of the motor's stops from the rated speed with deceleration without load.. If the load is connected, frequency will be defines as 1/(m+1), where m=load moment of inertia/rotor moment of inertia.・ When the motor speed exceeds the rated speed, regenerative brake frequency is in inverse proportion to thesquare of (running speed/rated speed).・Power supply voltage is AC115 V（at 100 V of the main voltage）、AC230 V（at 200 V of the main voltage).If the supply voltage fluctuates, frequency is in inverse proportion to the square of (Running supply voltage)relative to the value in the table.・When regeneration occurs continuously such cases as running speed frequently changes or vertical feeding, consult us ora dealer.2. About unlimited regenerative brake frequencyIf the effective torque is within the rated torque, there is no limit in generative brake.3. About recommended moment of inertia ratio of the load and the rotorConsult us or a dealer if the load moment of inertia exceeds the specified value.For details, check the catalog and instruction manuals. |
| Série | MSMD Series |
| Détails | Low inertia, Lead wire type, IP65 |
| Produit | MINAS A4 Family Servo motor |
| Joint d'huile | without |
| Enceinte | IP65 |
| Masse (kg) | 2.3 |
| Nom de famille | MINAS A4 Family |
| Numéro de pièce | MSMD082P1S |
| Nom du produit | MINAS A4 Family Servo Motor |
| Puissance nominale | 750 W |
| Frein de maintien | without |
| À propos de l'enceinte | Except rotating portion of output shaft and leadwire end. |
| Dimension carrée de la bride | 80 mm sq. |
| Courant max. (A (op)) | 17.0 |
| Couple nominal (N ⋅ m) | 2.4 |
| Spécifications de tension | 200 V |
| connecteur d'encodeur moteur | Lead wire |
| Conditions environnementales | For more details, please refer to the instruction manual. |
| configuration de sortie du moteur | Lead wire |
| Dimension carrée de la bride (Unité : mm) | 80 |
| Vitesse de rotation nominale (tr/min) | 3000 |
| Encodeur rotatif : spécifications | 2500 P/r Incremental system |
| Vitesse de rotation maximale nominale (tr/min) | 4500 |
| Couple de pointe maximal instantané (N ⋅ m) | 7.1 |
| Fréquence de freinage régénératif (fois/min) | Without option :No limitWith option : No limitOption (External regenerative resistor) Part No. : DV0P4283 |
| Moment d'inertie du rotor ( x10-4kg ⋅ m²) | 0.87 |
| Rapport des moments d'inertie recommandé entre la charge et le rotor | 20times or less |
