NPF-120-54

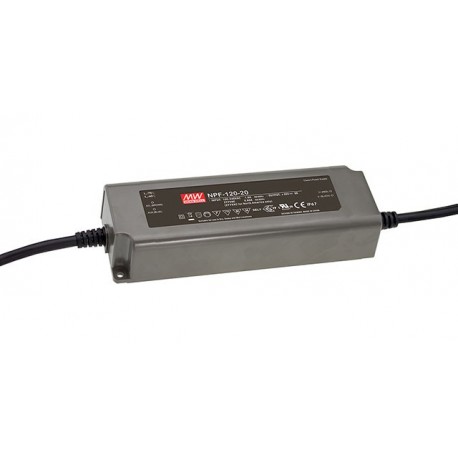

NPF-120-54 MEANWELL AC-DC Single output LED driver mix mode (CC+CV) with Active PFC, Output 54VDC / 2.3A
$0.00USD
4583 en stock
Spécifications clés
Nom:NPF-120-54
État:Recommended Model
Format:Box
Série:NPF-120
Informations sur le fournisseur
MEANWELL
Produits : 6448
Habituellement expédié sous 2 à 3 jours ouvrables
Qualité garantie
Livraison rapide
Support technique
Spécifications techniques
| Paramètre | Valeur |
|---|---|
| Nom | NPF-120-54 |
| État | Recommended Model |
| Format | Box |
| Série | NPF-120 |
| Approbations | CCC, CE, ENEC, UL |
| Puissance (W) | 124,20 |
| Sous-format | IP67 |
| Largeur (mm) | 63.00 |
| Hauteur (mm) | 37.50 |
| Entrée CA Max | 305,00 |
| Entrée CA Min | 90,00 |
| Applications | Lighting |
| Fabricant | MEAN WELL |
| Type de produit | LED Driver |
| Isolation (V) | 3.750,00 |
| Puissance de crête (W) | 124.2 |
| Connecteur d'entrée | Cable |
| Fréquence d'entrée | 50 Hz, 60 Hz |
| Contexte long | 191.00 |
| Description longue | LED driver.Specially designed for powering LEDs directly in a steady stream.Format in box Waterproof plasticIP67.Input range90-305Vca47-63Hz.Output in constant current2,3 A.Range of output voltage32,4 to 54Vccaccording to demade the load.Power:124,2 W.Efficiency typical:Total of 90.5%.Input class II without grounding.Factor corrector, power>0,96to 230vac at full load.Consumption without load <0,15 W.Operating temperature range of caseTcfrom-40ºCup+70ºC.Dimensions (Length x Width x Height):191 x 63 x 37.5 mm5 years of warranty.Manufacturer: MEAN WELL.This source is designed to work directly with leds (plates LED or COBs), not with LED strips. Must be equipment that is fed in a steady stream.This source can operate in either Constant Current when we connect the LEDs directly to have a voltage within the Range of Output Voltage mode Constant Current and a working current equal to the output current.You can also work in voltage mode constant giving a fixed voltage of 54V if the load is powered at constant voltage and does not overcome the maximum output power.With plastic housing, watertight, designed for lighting applications in indoor, decorative, architectural, signage, mobile (roads, screens...) or tunnel lighting. Suitable for damp and wet conditions. Approved HL Class I Division 2 for ex-zones in the US. |
| Connecteur de sortie | Cable |
| Type d'entrée CA | Single-phase |
| Garantie (années) | 5,00 |
| Pays d'origine | China |
| Courant de sortie mA | Two thousand three hundred |
| Intensité de sortie minimale (mA) | 2.300,00 |
| Intensité de sortie maximale (mA) | 2.300,00 |
Description du produit
More details
Caractéristiques principales
- Qualité de niveau industriel
- Conforme RoHS
- Certifié CE
- Garantie d’un an
Détails techniques
LED driver.
Documents du produit
Fiche technique
Spécifications techniques et données de performance
Manuel d'utilisateur
Guide d'installation et d'utilisation
