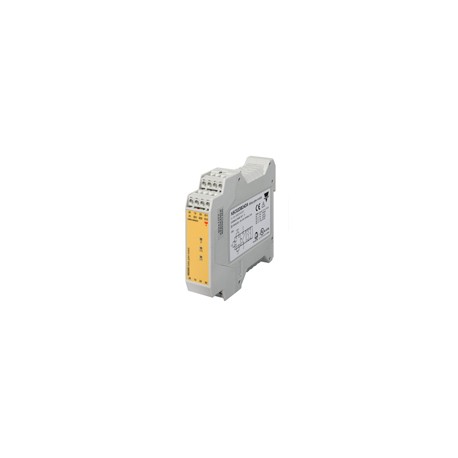

NSC13DB24DC

Safety ModulesSafety Gate and Safety Magnetic SensorTypesNSC02D, NSC13DScrew, fixedScrew, detachable• Safety Category 4, Performance Level e, according to EN 13849-1• Safety Category 4 according to EN 954-1• Category 0 Emergency Stop (EN 60204-1)• Input type: 1 NO + 1 NC• 2 x 6 A NO safety outputs (NSC02D)• 3 x 6 A NO safety outputs and 1 x 6 A NC auxiliary output (NSC13D)• Automatic / manual or monitored manual reset• Single / double channel operations• LED indication for outputs status and power supply ON• Connection by fixed or detachable terminals• For mounting on DIN-rail in accordance with DIN/EN 50022• 22.5 mm Euronorm housingProduct DescriptionOrdering KeyNSC 0 2 D B24 S ASafety gate and safety magnetic sensor modules according to EN 60204-1, EN292-1/-2, EN418andEN1088.This family of safety module inSafetyCategory4,TypeSelectionPerformance Level e, includes fixed screw and detachable screw as well as automatic / manual or monitored manual restart versions.Housing Function Auxiliary outputs Safety outputs Safety category Power supply Terminals Start/Reset typeAuxiliary outputsSafetyoutputs Terminals Start/Reset type Supply: 24 VAC/DC2 NOScrew, fixedAutomatic / Manual N SC 0 2 D B24 S A2 NOScrew, fixedMonitored manualN SC 0 2 D B24 S C2 NOScrew, detachableAutomatic / Manual N SC 0 2 D B24 D A2 NOScrew, detachableMonitored manualN SC 0 2 D B24 D C1 NC3 NOScrew, fixedAutomatic / Manual N SC 1 3 D B24 S A1 NC3 NOScrew, fixedMonitored manualN SC 1 3 D B24 S C1 NC3 NOScrew, detachableAutomatic / Manual N SC 1 3 D B24 D A1 NC3 NOScrew, detachableMonitored manualN SC 1 3 D B24 D CTimeSpecificationInputSpecificationDelay ON energisation < 150 ms Delay ON de-energisation< 30 ms Recovery time ≥ 30 ms Channel simultaneityduring outputs closing InfiniteInput operating to STARToperating delayNSC...C> 500 msFunction1 NO + 1NC, voltage freeInput currentNSC02DTerminals S12-S22 max. 35 mA Terminals S11-S21 max. 10 mANSC13DTerminals S11-S12 max. 35 mA Terminals S21-S22 max. 10 mAInput resistanceNSC02DTerminals S12-S22 max. 3.3 kΩNSC13DTerminals S11-S12 max. 3.3 kΩExternal contact resistanceNSC02DTerminals S12-S22 max. 60ΩTerminals S11-S21 max. 60ΩNSC13DTerminals S11-S12 max. 60ΩTerminals S21-S22 max. 60Ω1Specifications are subject to change without notice. Pictures are just an example. For special features and/or customization, please ask to our sales network.27/09/12
