En stock Produit phare
OWA-60U-36

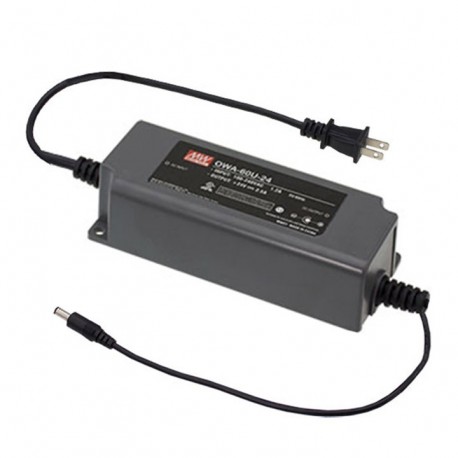

OWA-60U-36 MEANWELL AC-DC Single output moistureproof adaptor with PFC, Input 2 pin USA plug, Output 36VDC /..
$0.00USD
3557 en stock
Spécifications clés
Nom:OWA-60U-36
État:New
Format:Box
Série:OWA-60
Informations sur le fournisseur
MEANWELL
Produits : 6448
Habituellement expédié sous 2 à 3 jours ouvrables
Qualité garantie
Livraison rapide
Support technique
Spécifications techniques
| Paramètre | Valeur |
|---|---|
| Nom | OWA-60U-36 |
| État | New |
| Format | Box |
| Série | OWA-60 |
| Approbations | UL |
| Puissance (W) | 60,10 |
| Sous-format | IP67 |
| Largeur (mm) | 53.00 |
| Hauteur (mm) | 35.00 |
| Entrée CA Max | 264,00 |
| Entrée CA Min | 90,00 |
| Applications | Industrial, Telecommunications |
| Fabricant | MEAN WELL |
| Type de produit | LED Driver |
| Isolation (V) | 3.750,00 |
| Puissance de crête (W) | 60.1 |
| Connecteur d'entrée | Pin American |
| Fréquence d'entrée | 50 Hz, 60 Hz |
| Contexte long | 130.00 |
| Description longue | LED driver.Specially designed for powering LEDs directly in a steady stream.Format in box waterproof plasticIP67.Range of universal input90-264Vac47-63Hz.Output in constant current1670mA.Range of output voltage with current mode constant18 to 36Vccaccording to demand load.Power:With 60.1 W.Efficiency typical:88.5 per cent.Input class II without grounding.Consumption without load<0,15 W.Operating temperature range of caseTcfrom-35ºCup+70ºC.Dimensions (Length x Width x Height):130 x 53 x 35mm.5 years warranty.Manufacturer: MEAN WELL.This source is designed to work directly with leds (plates LED or COBs), not with LED strips. Must be equipment that is fed in a steady stream.This source can operate in either Constant Current when we connect the LEDs directly to have a voltage within the Range of Output Voltage mode Constant Current and a working current equal to the output current.You can also work in voltage mode constant giving a fixed voltage of 36V if the load is powered at constant voltage and does not overcome the maximum output power.With plastic housing waterproof IP67 suitable for outdoor use. Intended for electronic products that are used in dusty environments or wet (lawn, home appliances...). Also suitable for interior, office and decoration.The series OWA-60U has input connector americanNEMA 1-15Pand output connector Jack 5.5 x 2.1 x 11 mm (outer diameter, inner and length), and center positive. |
| Connecteur de sortie | P1J Tunnig Fork 5.5 x 2.1 x 11. C+ |
| Type d'entrée CA | Single-phase |
| Garantie (années) | 5,00 |
| Pays d'origine | China |
| Courant de sortie mA | 1650, 1700 |
| Intensité de sortie minimale (mA) | 1.670,00 |
| Intensité de sortie maximale (mA) | 1.670,00 |
Description du produit
More details
Caractéristiques principales
- Qualité de niveau industriel
- Conforme RoHS
- Certifié CE
- Garantie d’un an
Détails techniques
LED driver.
Documents du produit
Fiche technique
Spécifications techniques et données de performance
Manuel d'utilisateur
Guide d'installation et d'utilisation
