PV-FT-C3F-C-2,5-4-VPE50

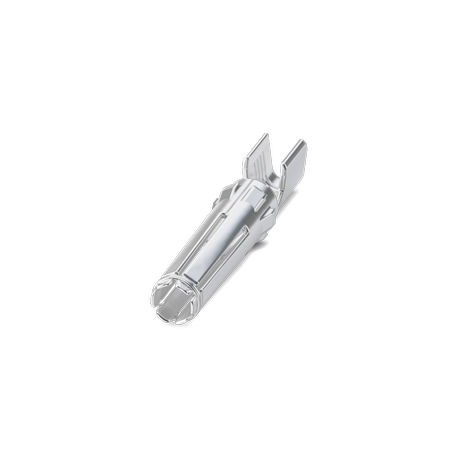

PV-FT-C3F-C-2,5-4-VPE50 1196767 PHOENIX CONTACT Crimp contact, Family of articles: SUNCLIX, number of poles:..
$0.77USD
13017 en stock
Spécifications clés
:• WARNING: Only electrically qualified personnel may install and operate the product. They must observe the following safety notes. The qualified personnel must be familiar with the basics of electrical engineering. They must be able to recognize and prevent danger. The relevant symbol on the packaging indicates that only personnel familiar with electrical engineering are allowed to install and operate the product.
Largeur:6.2 mm
Hauteur:6.2 mm
Longueur:31.6 mm
Informations sur le fournisseur
Produits : 0
Habituellement expédié sous 2 à 3 jours ouvrables
Qualité garantie
Livraison rapide
Support technique
Spécifications techniques
| Paramètre | Valeur |
|---|---|
| • WARNING: Only electrically qualified personnel may install and operate the product. They must observe the following safety notes. The qualified personnel must be familiar with the basics of electrical engineering. They must be able to recognize and prevent danger. The relevant symbol on the packaging indicates that only personnel familiar with electrical engineering are allowed to install and operate the product. | |
| Largeur | 6.2 mm |
| Hauteur | 6.2 mm |
| Longueur | 31.6 mm |
| Consignes de sécurité | • WARNING: Commission properly functioning products only. The products must be regularly inspected for damage. Decommission defective products immediately. Replace damaged products. Repairs are not possible. |
| Type de produit | Panel feed-through |
| Famille de produits | Sunclix |
| Force d'insertion | < 45 N ±10 N |
| Matériel de contact | Cu |
| Méthode de connexion | Crimp |
| résistance de contact | < 0.3 mΩ (Crimp to crimp) |
| Nombre de positions | 1 |
| matériau de surface de contact | Ag |
| Courant nominal (2,5 mm²) | 27 A |
| Courant nominal (4,0 mm²) | 34 A |
| Fil unique, section transversale | 2.5 mm² 4 mm² |
| Cycles d'insertion/retrait | 100 |
| Température ambiante (assemblage) | -5 °C ... 50 °C |
| Température ambiante (fonctionnement) | -40 °C ... 85 °C |
| Longueur de dénudage du fil individuel | 9 mm -1 mm |
Description du produit
Crimp Contact, Item Family: Sunclix, Number of Poles: 1, Min. Conductor Section: 2.5 mm², Max. Conductor Section: 4 mm², Rated Current: 27 A, Connection Type: Crimp, Contact Connection Type: Female
Caractéristiques principales
- Qualité de niveau industriel
- Conforme RoHS
- Certifié CE
- Garantie d’un an
Documents du produit
Fiche technique
Spécifications techniques et données de performance
Manuel d'utilisateur
Guide d'installation et d'utilisation
