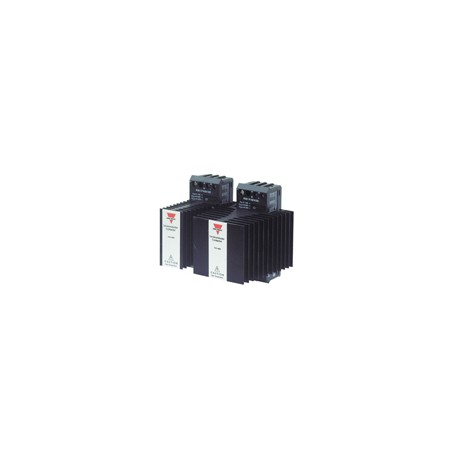

RN1F23V50

Solid State RelaysAnalog Full CycleSwitchingTypeRN.F• AC solid state relay, 1- and 2-poles• Analog switching for resistive loads (heating)• 4-20 mA or 0-10 V controls• Rated operational current: 1-pole : 30A and 50A2-pole : 2 x15A and 2 x 25A• Rated operational voltage up to 480 VAC• LED-indication for normal operation and alarm status• IP 20 protection• DIN-rail mountableProduct Description Ordering Key RN 1 F 40 V 30The analog switching relay pro- vides a number of full cycles, evenly distributed over a fixed period, depending of the con- trol input. The input of 4-20 mA or 0-10 VDC respectively, correspondstozero and full output within a period of 1.28 s@ 50 Hz (1.07 s @ 60 Hz). This principle makes the transfer characteristics fully linear. Theprinciple operates with zero switching, thus ensuring a reduced level of radiated and wire conducted noise. The 2- pole type has alarm LED indi- cation by loss of master phase. The analogue Full Cycle Switching is not recom- mended for light control due to light-flickering.Solid State Relay Number of poles Switching typeRated operational voltageControl signalRated operational currentTypeSelection, 1-PoleRated ControlControlRated operational current operational voltage inputsupply 30 A 50 A120 VAC4-20 mARN 1F12I30 RN 1F12I500-10 VDC12-32 VDC, 24 VAC RN 1F12V30RN 1F12V50230 VAC4-20 mARN 1F23I30 RN 1F23I500-10 VDC12-32 VDC, 24 VAC RN 1F23V30RN 1F23V50480 VAC4-20 mARN 1F48I30 RN 1F48I500-10 VDC12-32 VDC, 24 VAC RN 1F48V30RN 1F48V50TypeSelection, 2-PoleRated ControlControlRated operational currentoperational voltage inputsupply 30 A Total (2 x 15A)50 A Total (2 x 25A)120 VAC4-20 mARN 2F12I30 RN 2F12I500-10 VDC12-32 VDC, 24 VAC RN 2F12V30RN 2F12V50230 VAC4-20 mARN 2F23I30 RN 2F23I500-10 VDC12-32 VDC, 24 VAC RN 2F23V30RN 2F23V50480 VAC4-20 mARN 2F48I30 RN 2F48I500-10 VDC12-32 VDC, 24 VAC RN 2F48V30RN 2F48V50Specifications are subject to change without notice (20.08.2012) 1
