En stock Produit phare

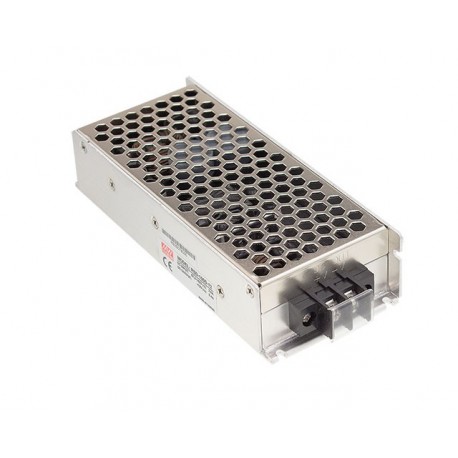

RSD-100B-24
RSD-100B-24 MEANWELL DC-DC Enclosed converter, Input 14.4-33.6VDC, Output +24VDC / 4.2A, railway standard EN..
$64.18USD
193 en stock
Spécifications clés
Nom:RSD-100B-24
État:Recommended Model
Format:Box
Série:RSD-100
Informations sur le fournisseur
MEANWELL
Produits : 6448
Habituellement expédié sous 2 à 3 jours ouvrables
Qualité garantie
Livraison rapide
Support technique
Spécifications techniques
| Paramètre | Valeur |
|---|---|
| Nom | RSD-100B-24 |
| État | Recommended Model |
| Format | Box |
| Série | RSD-100 |
| Approbations | EC |
| Puissance (W) | 100,80 |
| Sous-format | IP20 |
| Largeur (mm) | 68.00 |
| Hauteur (mm) | 36.00 |
| Plage d'entrée | 2:1 |
| Applications | Railway, Industrial, Telecommunications |
| Entrée CC max. | 31,20 |
| Entrée CC min | 16,80 |
| Fabricant | MEAN WELL |
| Type de produit | Dc/DC converters |
| Isolation (V) | 4.000,00 |
| Tension de sortie | 24,00 |
| Puissance de crête (W) | 100.8 |
| Plage d'entrée CC | 16,8, 18, 19, 20,4, 21, 21,6, 22,5, 24, 25,2, 26,4, 28, 28,8, 30, 31,2 |
| Connecteur d'entrée | Screw-Type |
| Contexte long | 161.00 |
| Description longue | Dc/DC converter rail is a regulated isolated output.Converter for railway applications, industrial or telecommunications.Input range16,8-31,2 Vdc(14,4-33,6 Vdc for 1 second). Range rail to 24V input.Output voltage24vdc.Output intensity:4,2 A.Power:100,8 W.Isolation input-output 4000Vcc.Efficiency of the89%.Operating temperature from-40up+70 ° C(see the curve derived in the technical data sheet). 85 ° c for 10 minutes with ventilation by conduction.Dimensions (Length x Width x Height):161 x 68 x 36mm.3 years of warranty.Manufacturer: MEAN WELL.It is a converter designed for railway applications, industrial or telecommunications.Is certified with the regulations for railway EN50155 and EN45545-2 in front of the fire.Can operate up to 55C at full load and 70 ° C at 60% load or 70 ° C ambient temperature with ventilation by driving without losses. Also supports a temperature range of more demanding level rail Tx to 85ºC ambient temperature for 10 minutes with ventilation by driving on a metal surface.This converter semi-encapsulation has been designed for the most demanding applications at the level of vibration, temperature, and humidity. Has a low profile of only 36mm and uses only components prepared for high temperatures as for example capacitors of 105ºC.It has a low noise and ripple, and high efficiency and is protected against reverse polarity at the input. The inrush current is limited by a resistor in series with a MOSFET to reduce the peak starting current to reliably regardless of the ambient temperature.Its output is protected against short-circuits and overloads by limiting output current, this allows you to start loads with a high inrush. |
| Connecteur de sortie | Screw-Type |
| Garantie (années) | 3,00 |
| Pays d'origine | Taiwan |
Description du produit
More details
Caractéristiques principales
- Qualité de niveau industriel
- Conforme RoHS
- Certifié CE
- Garantie d’un an
Détails techniques
Dc/DC converter rail is a regulated isolated output.
Documents du produit
Fiche technique
Spécifications techniques et données de performance
Manuel d'utilisateur
Guide d'installation et d'utilisation
