SPD-20-240P

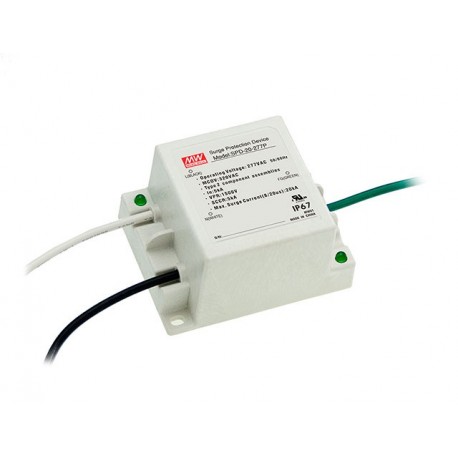

SPD-20-240P MEANWELL Surge protection device for 240VAC 50/60hZ, MCOV 300VAC, Voltage Protection R/ing 1500V..
$0.00USD
3237 en stock
Spécifications clés
Nom:SPD-20-240P
Action:Yes
Format:Din Rail
Série:SPD-20
Informations sur le fournisseur
MEANWELL
Produits : 6448
Habituellement expédié sous 2 à 3 jours ouvrables
Qualité garantie
Livraison rapide
Support technique
Spécifications techniques
| Paramètre | Valeur |
|---|---|
| Nom | SPD-20-240P |
| Action | Yes |
| Format | Din Rail |
| Série | SPD-20 |
| Approbations | EC |
| Sous-format | IP67 |
| Largeur (mm) | 70.00 |
| Hauteur (mm) | 50.00 |
| Entrée CA Max | 300,00 |
| Applications | Building automation, Lighting, household Appliances, Industrial, Medical, Solar, Telecommunications |
| Fabricant | MEAN WELL |
| Type de produit | Protector against Transient |
| Connecteur d'entrée | Cable |
| Fréquence d'entrée | 50 Hz, 60 Hz |
| Contexte long | 90.00 |
| Description longue | Protector of transients.Format box of waterproof plasticIP67.Input voltage nominal240vac. 47-63Hz.Maximum working voltage continuous300Vca.Voltage protectionrated1500V(between line-to-ground, neutral-to-ground and line-to-neutral).Rated discharge 5kA.Maximum transient current 20kA.Time of response <25ns.Connection in parallel with the electric grid.Led indicator of operation.Working temperature: from-40ºCup+70 ° Cof ambient temperature.Dimensions (Length x Width x Height) [mm]:90 x 70 x 50.3 years of warranty.Manufacturer: MEAN WELL.The protectors series SDP are devices designed to protect sensitive equipment of an installation when we have problems with the electric grid. Transients or voltage surges of high intensity is typically occur on the electrical network due to sudden changes in consumption or other problems of an electrical supply. This generates an overvoltage in the electrical network of high energy that can damage connected equipment. The series SPD-20 allow us to protect any sensitive electronic equipment like e.g. transformers LED or LED drivers in lighting public or connected equipment in areas with common problems on the electrical network such as industrial estates.The installation is performed in parallel with the electric grid so that we don't have to connect a protective device but a by-line and can be mounted easily on a Din rail and the led indicator of operation visible.For its proper functioning, we must have a good grounding already in case of overvoltage, the excess energy was derived to the earth. We must have an impedance less than 3 ohms to ground to work properly.This team doesn't protect us in the event of a crash of lightning, because it can generate a voltage of more than a million volts. For this type of problem, there are protectors specifically for ray. |
| Connecteur de sortie | Cable |
| Type d'entrée CA | Single-phase |
| Garantie (années) | 3,00 |
| Pays d'origine | China |
| Protection contre les surtensions | 1.500,00 |
| Intensité de sortie maximale (mA) | 20.000.000,00 |
Description du produit
More details
Caractéristiques principales
- Qualité de niveau industriel
- Conforme RoHS
- Certifié CE
- Garantie d’un an
Détails techniques
Protector of transients.
