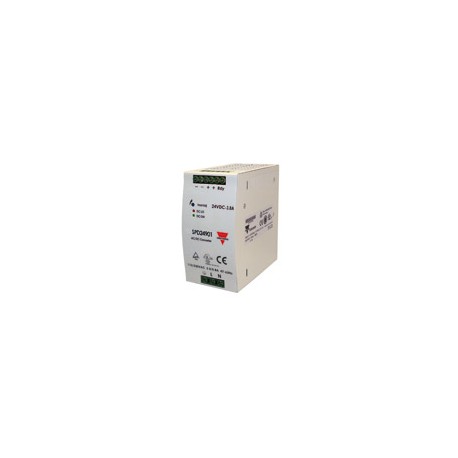

SPD24901B

Switching Power SupplyType SPD 90WDIN railmounting• Installation on DIN Rail 7.5 or 15mm• Short circuit protection• PFC standard• High efficiency• Power ready output• LED indicator for DC power ON• LED indicator for DC low• Model specific to meet UL 1310 class 2• UL, cUL listed and TUV/CE approvedProduct DescriptionOrdering Key SP D 24 90 1 BThe Switching power supplies SPD series are specially designed to be used in all automation application where the installation is on a DIN railApprovalsand compact dimensions and performance are a must.This version is specifically developed to meet UL1310 class 2.ModelMounting ( D = Din rail ) Output voltageOutput power Input type Optional featuresInput type: 1= single phaseRheinlandProduct SafetyOptional FeaturesDescription CodeStandard screw terminal NilPlug-in connectorsBOutput performancesRated outputOutputDC ON LED (VDC)DC LO LED (VDC)ModelVoltagePowerOutputVoltage Trim Range Thereshold at startup Thereshold after startupTypical(VDC)(W)Current (A)Min. VDC Max. VDC Min.Max.Min.Max.EfficiencySPD249024 92 3.822.5 24.5 17.6 19.4 17.0 19.485%Output dataOutput voltage accuracy-0 +1% max (factory adjusted)Line regulation± 0.5%Load regulationNon parallel model ± 1% Parallel model± 5%Temp. coefficient± 0.3% / °CTransient recovery time300µsRipple and noise50mVppHold up Time Vi = 115VAC25msHold up time Vi = 230VAC 30msMinimum load0%Parallel OperationNoInputdataRated input voltage115/230 autoselectVoltage rangeAC in, 11590 - 132VAC AC in, 230 186 - 264VAC DC in 210 - 370VDCRated input current2.0 / 0.8A Frequency range47- 63 Hz Inrush currentVi= 115VAC 24AVi= 230VAC 48AP.F.C.0.71 Specifications are subject to change without notice. Pictures are just an example. For special features and/or customization, please ask to our sales network. - 1410
