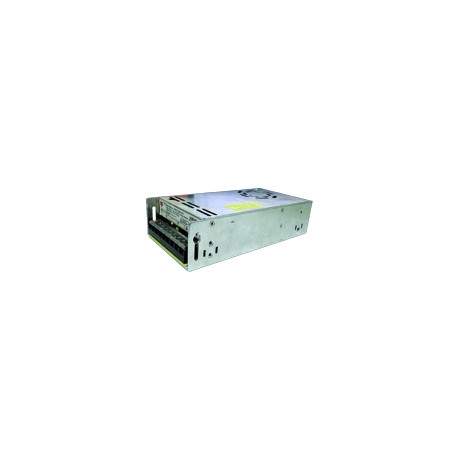

SPPC53201FC

Switching Power SupplyEnclosed Type SPPC 320W SeriesSingle Output•Built-in active PFC(Power Factor Protection), PF>0.95• Compact size• Built-in cooling fan speed control• Universal AC input• Withstand 300Vac surge input for 5 sec• High efficiency, long life and high reliability• Output protections: SCP/OLP/OPP• Wide operating ambient temperature (-25°C-70°C)• Operating altitude up to 5,000m• 100% full load burn-in test• PCB both sides with conformal coating• 105°C long life electrolytic capacitorProduct DescriptionOrdering KeySP PC XX 320 1 F CEnclosed Switching Power Supply forAC DC and DC DC power requirements. The new SPPC family provides flexible OEM power solutions for industrial control and automationapplications,which in the case of the SPPC320W ranges from 5V to 48V. All the range carriesfull certificationofferingawide range of universal input and screw terminal connections.Power supply model Panel mounted Output voltage Output powerInput type (single phase)Power Factor Correction (PFC) CompactApprovalsE258396Output PerformancesMODEL NO. INPUTVOLTAGEOUTPUTVOLTAGEVOLTAGE ADJRATEDCURRENTVOLTAGE ACCURACYSPPC 5320 1FC85VAC~264VACSingle Output Models120VDC~370VDC5V -5%~+10%55 A±1.0%85VAC~264VAC120VDC~370VDC 12V-5%~+10%25 A±1.0%85VAC~264VAC120VDC~370VDC 24V-5%~+10%13 A±1.0%85VAC~264VAC120VDC~370VDC 48V-5%~+10%6.7 A ±1.0%Output DataCurrent rangeSPPC 5320 1FC 0~55A SPPC 12320 1FC 0~25A SPPC 24320 1FC 0~13A SPPC 48320 1FC 0~6.7ARipple and noise *NoteSPPC 5320 1FC<150mV SPPC 12320 1FC <150mV SPPC 24320 1FC <200mV SPPC 48320 1FC <200mVLine regulation± 0.5%Load regulation ± 1.0%Turn on time≤2S (230VAC input, Full load)Output voltage accuracy±1.0%Temperature coefficient ±0.03%/°CHold up time≥10mS (230VAC input, Full load)Overshoot and Undershoot < 5.0%*Note: Measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uF & 10uF parallel capacitor.1 Specifications are subject to change without notice. Pictures are just an example. For special features and/or customization, please ask to our sales network. 16/07/2014
