UDP75125N

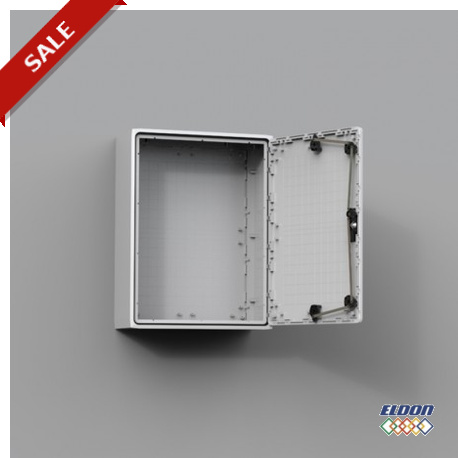

UDP75125N ELDON Wall mounted, 750x500+750x320
$0.00USD
3213 en stock
Spécifications clés
Note:Plain double door
Corps::Modular moulded, with rear fixing. Direct fixing to the wall or by use of wall mounted brackets, to a pole by use of EPF or to the floor by use of the plinth UPP or DIN-base UAF and UMPS. In single plain door enclosures, sealing is ensured by an EPDM gasket glued against the frame.
Profondeur:320 mm
Porte::Flush mounted door with or without window and 100º opening. For larger sizes a door support is supplied for easier closing. In double door enclosures, sealing is ensured by an injected one piece polyurethane gasket.
Informations sur le fournisseur
ELDON
Produits : 4827
Habituellement expédié sous 2 à 3 jours ouvrables
Qualité garantie
Livraison rapide
Support technique
Spécifications techniques
| Paramètre | Valeur |
|---|---|
| Note | Plain double door |
| Corps: | Modular moulded, with rear fixing. Direct fixing to the wall or by use of wall mounted brackets, to a pole by use of EPF or to the floor by use of the plinth UPP or DIN-base UAF and UMPS. In single plain door enclosures, sealing is ensured by an EPDM gasket glued against the frame. |
| Profondeur | 320 mm |
| Porte: | Flush mounted door with or without window and 100º opening. For larger sizes a door support is supplied for easier closing. In double door enclosures, sealing is ensured by an injected one piece polyurethane gasket. |
| Verrouillage: | Premounted handle suitable for all types of half cylinder locks (standard depth of 40 mm). Five locking points (three points in 500 mm width enclosures). |
| Largeur | 500+750 mm |
| Hauteur | 750 mm |
| Poids | 38,00 Kg |
| Finition: | RAL 7035, precoloured raw material. |
| Livraison: | Enclosure with door, fixing screws for the mounting plate and wall mounting brackets. (Lock cylinder is not included in the delivery). |
| Matériel: | Fibre-glass reinforced polyester. UDPT viewing area: polycarbonate. |
| Approbations : | CE, CSA, GOST and cULus_listed. For further approvals, please contact nVent HOFFMAN`s sales department. |
| Protection: | Complies with IP 65 TYPE 4, 4X, 12, 13 for single door enclosures / IP 54 TYPE 4, 4X, 12, 13 for double door and transparent door enclosures. Impact resistance IK 10 (IK 07 for enclosures with transparent door). |
| Nombre de portes | 2 |
| Caractéristiques | |
| Caractéristiques: | Self extinguishing and halogen free. Double isolated according to EN61439-1. Rated insulation voltage Ui=1000V. |
| Résistance à la température : | -50°C to 70°C in continuous use (peak temperatures up to 150ºC). |
Description du produit
More details
Caractéristiques principales
- Qualité de niveau industriel
- Conforme RoHS
- Certifié CE
- Garantie d’un an
Détails techniques
The polyester range of modular enclosures, conforms to IP 65 for single door and IP 54 for double door enclosures. The modular enclosures are a fibre-glass reinforced polyester design with double insulation offering the users maximum safety. Different modular enclosures can be combined together to achieve larger configurations.
