En stock Produit phare
UDPS402

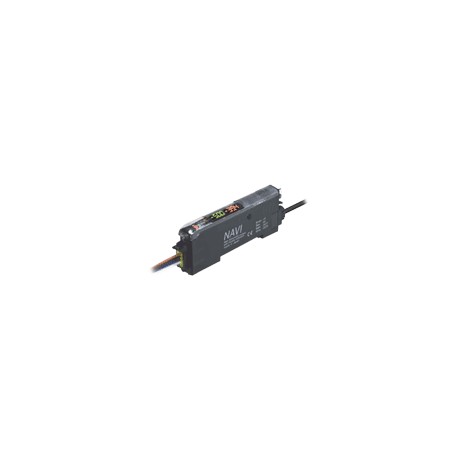

UDPS402 DPS-402 PANASONIC Ampl. seperated pressure sensor, positive pressure
$0.00USD
4839 en stock
Spécifications clés
Article:Specifications
Remarque:・Where measurement conditions have not been specified precisely, the conditions used were an ambient temperature of +20℃+68℉.・The cable for controller connection is not supplied as an accessory. Make sure to use the quick-connection cables (optional) given below.Main cable (4-core) : CN-74-C1 (cable length : 1m3.281 ft), CN-74-C2 (cable length : 2 m6.562 ft), CN-74-C5 (cable length : 5 m16.404 ft)Sub cable (2-core) : CN-72-C1 (cable length : 1m3.281 ft), CN-72-C2 (cable length : 2 m6.562 ft), CN-72-C5 (cable length : 5 m16.404 ft)・The values specified above are applied only to the controller.
Poids:Net weight : 20 g approx.
Détails:Controller
Informations sur le fournisseur
PANASONIC
Produits : 4316
Habituellement expédié sous 2 à 3 jours ouvrables
Qualité garantie
Livraison rapide
Support technique
Spécifications techniques
| Paramètre | Valeur |
|---|---|
| Article | Specifications |
| Remarque | ・Where measurement conditions have not been specified precisely, the conditions used were an ambient temperature of +20℃+68℉.・The cable for controller connection is not supplied as an accessory. Make sure to use the quick-connection cables (optional) given below.Main cable (4-core) : CN-74-C1 (cable length : 1m3.281 ft), CN-74-C2 (cable length : 2 m6.562 ft), CN-74-C5 (cable length : 5 m16.404 ft)Sub cable (2-core) : CN-72-C1 (cable length : 1m3.281 ft), CN-72-C2 (cable length : 2 m6.562 ft), CN-72-C5 (cable length : 5 m16.404 ft)・The values specified above are applied only to the controller. |
| Poids | Net weight : 20 g approx. |
| Détails | Controller |
| Produit | Head-separated Dual Display Digital Pressure Sensor [For Gas] |
| Matériel | Enclosure : Heat-resistant ABS, Protective cover : Polycarbonate, Jog switch : ABS, MODE key : Acrylic |
| Numéro de pièce | DPS-402 |
| Nom du produit | Head-separated Dual Display Digital Pressure Sensor [For Gas] DPS-400 / DPH-100 |
| Numéro de produit | DPS-402 |
| Tension d'alimentation | 12 to 24 V DC ±10 % Ripple P-P 10 % or less |
| Humidité ambiante | 35 to 85 % RH, Storage : 35 to 85 % RH |
| Consommation d'énergie | Normal operation : 650 mW or less (Current consumption 25 mA or less at 24 V supply voltage)ECO mode : 500 mW or less (Current consumption 20 mA or less at 24 V supply voltage)(Note): Excluding current consumption of the applicable pressure sensor head. |
| Entrée de la tête de capteur | Input voltage range : 1 to 5 V DC (over rated pressure range) |
| Production comparative | NPN open-collector transistor・Maximum sink current : 50 mA (Note 1)・Applied voltage : 30 V DC or less (between comparative output and 0 V)・Residual voltage : 1.5 V or less (Note 2) [at 50 mA (Note 1) sink current](Note 1): 25 mA max. if 5 or more controllers are connected together.(Note 2): In case of using the quick-connection cable (cable length : 5 m16.404 ft)(optional) |
| Température ambiante | -10 to +50℃+14 to +122℉(cascading 8 to 16 controllers : -10 to +45℃+14 to +133℉)(No dew condensation or icing allowed), Storage : -20 to +70℃-4 to +158℉ |
| Plage de pression nominale | Positive pressure : 0 to +1.000MPa |
| Tête de capteur applicable | Positive pressure : DPH-102□ |
| tension d'alimentation de la tête de capteur | Same as supply voltage |
| caractéristiques de température | Over ambient temperature range -10 to +50℃+14 to +122℉: within ±0.5 % F.S. of pressure at +25℃+77℉ |
| Plage de pression d'affichage/de réglage | Positive pressure : -1.050 to +1.050 MPa |
| Résultats comparatifs : hystérésis | Minimum 0 digit, variable by hysteresis setting |
| Conformité à la directive de marquage CE | EMC Directive, RoHS Directive |
| Résultats comparatifs : répétabilité | With compound pressure type connected : within ±0.2 % F.S. (±4 digits), With vacuum / positive pressure type connected : within ±0.2 % F.S. (±2 digits) |
| Résultat comparatif : Temps de réponse | 150 μs, 500 μs, 1 ms, 5 ms, 10 ms, 50 ms, 100 ms, 500 ms, selectable by jog switch |
| Sortie comparative : Opération de sortie | NO / NC, selectable by jog switch |
Description du produit
Pressure Sensor, Amplifier, Digital Pressure Controller
Caractéristiques principales
- Qualité de niveau industriel
- Conforme RoHS
- Certifié CE
- Garantie d’un an
Documents du produit
Fiche technique
Spécifications techniques et données de performance
Manuel d'utilisateur
Guide d'installation et d'utilisation
