UEXZ11A

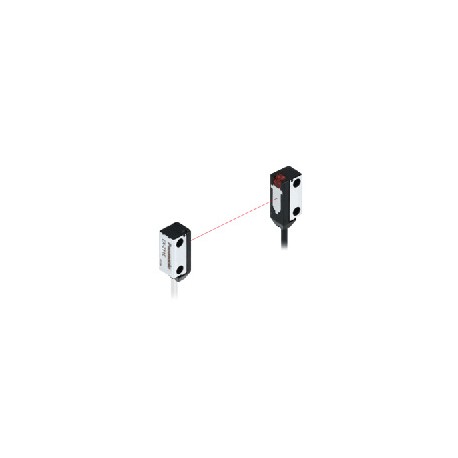

UEXZ11A EX-Z11A PANASONIC Thru beam, 50mm, Side sensing, Light-ON, NPN, cable 2m
$0.00USD
4678 en stock
Spécifications clés
Article:Specifications
Câble:0.1 mm23-core (emitter: 2-core) cabtyre cable, 2 m6.562 ftlongNote:The bending-resistant cable type has a 0.1 mm23-core (thru-beam type emitter: 2-core) bending-resistant cabtyre cable, 2 m6.562 ftlong.
Sortir:NPN open-collector transistor- Maximum sink current: 20 mA- Applied voltage: 30 V DC or less (between output and 0 V)- Residual voltage: 1.5 V or less (at 20 mA sink current)
Remarque:Where measurement conditions have not been specified precisely, the conditions used were an ambient temperature of +23 ℃73 ℉.
Informations sur le fournisseur
PANASONIC
Produits : 4316
Habituellement expédié sous 2 à 3 jours ouvrables
Qualité garantie
Livraison rapide
Support technique
Spécifications techniques
| Paramètre | Valeur |
|---|---|
| Article | Specifications |
| Câble | 0.1 mm23-core (emitter: 2-core) cabtyre cable, 2 m6.562 ftlongNote:The bending-resistant cable type has a 0.1 mm23-core (thru-beam type emitter: 2-core) bending-resistant cabtyre cable, 2 m6.562 ftlong. |
| Sortir | NPN open-collector transistor- Maximum sink current: 20 mA- Applied voltage: 30 V DC or less (between output and 0 V)- Residual voltage: 1.5 V or less (at 20 mA sink current) |
| Remarque | Where measurement conditions have not been specified precisely, the conditions used were an ambient temperature of +23 ℃73 ℉. |
| Poids | Net weight (each emitter and receiver) : 15 g approx.Gross weight: 35 g approx. |
| Détails | Thru-beam [Side sensing] |
| Produit | Ultra-minute Photoelectric Sensor |
| Matériel | Enclosure: PBTLens: PolycarbonateMetallic part: Stainless steel (SUS304)(SUS301 for rear side of front sensing type) |
| Accessoire | M2 mounting screws: 1 set (front sensing type: 6 mm0.236 inin length; side sensing type: 10 mm0.394 inin length) |
| Mise à la terre | Floating |
| Protection | IP67 (IEC) |
| Numéro de pièce | EX-Z11A |
| Nom du produit | Ultra-minute Photoelectric Sensor EX-Z |
| temps de réponse | 0.5 ms or less |
| Portée de détection | 50 mm1.969 in |
| Numéro de produit | EX-Z11A |
| Tension d'alimentation | 12 to 24 V DC ±10 % Ripple P-P 10 % or less |
| rallonge de câble | Extension up to total 50 m164 ftis possible with 0.3 mm2, or more, cable (both emitter and receiver) . |
| Humidité ambiante | 35 to 85 % RH, Storage: 35 to 85 % RH |
| Élément émetteur | Red LED (Peak emission wavelength: 650 nm0.026 mil, modulated) |
| Opération de sortie | Light-ON |
| résistance aux chocs | 500 m/s2acceleration (50 G approx.) in X, Y and Z directions for three times each |
| Éclairage ambiant | Incandescent light: 5,000 ℓx at the light-receiving face |
| Température ambiante | -10 to +55 ℃14 to +131 ℉(No dew condensation or icing allowed), Storage: -30 to +70 ℃-22 to +158 ℉ |
| Consommation de courant | Emitter: 10 mA or lessReceiver: 10 mA or less |
| Objet de détection min. | ø0.3 mmø0.012 inopaque object (Completely beam interrupted object)(Setting distance between emitter and receiver: 50 mm1.969 in) |
| Indicateur de fonctionnement | Orange LED (Lights up when the sensing output is ON) |
| Indicateur de stabilité | Green LED (Lights up under the stable light received condition or the stable dark condition) |
| résistance aux vibrations | 10 to 500 Hz frequency, 3 mm0.118 inamplitude in X, Y and Z directions for two hours each |
| résistance d'isolation | 20 MΩ or more, with 250 V DC megger between all supply terminals connected together and enclosure |
| tenue en tension | 1,000 V AC for one min. between all supply terminals connected together and enclosure |
| Sortie : Protection contre les courts-circuits | Incorporated |
| Réglementations et certifications applicables | CE Marking (EMC Directive, RoHS Directive), UKCA Marking (EMC Regulations, RoHS Regulations), UL/c-UL Certification |
| Répétabilité (perpendiculaire à l'axe de détection) | 0.02 mm0.001 inor less |
Description du produit
Ultra-miniature and ultra-compact photoelectric sensor. Barrier, 50mm reach, side detection, light operation, NPN, 2m cable, dimensions 6.5 x 12 x 5.5
Caractéristiques principales
- Qualité de niveau industriel
- Conforme RoHS
- Certifié CE
- Garantie d’un an
