UHGC1100

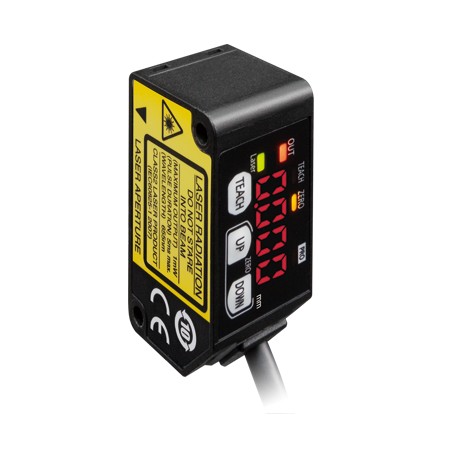

UHGC1100 HG-C1100 PANASONIC Compact Laser Displacement Sensor, 100mm+-35mm, NPN, 0-5V/4-20mA, cable 2m
$0.00USD
4278 en stock
Spécifications clés
Article:Specifications
Câble:5-core composite cable, 2 m6.5617 ftlong
Poids:Net weight: 35 g approx. (without cable), 85 g approx. (including cable)
Détails:Measurement center 100mm 3.937 in type
Informations sur le fournisseur
PANASONIC
Produits : 4316
Habituellement expédié sous 2 à 3 jours ouvrables
Qualité garantie
Livraison rapide
Support technique
Spécifications techniques
| Paramètre | Valeur |
|---|---|
| Article | Specifications |
| Câble | 5-core composite cable, 2 m6.5617 ftlong |
| Poids | Net weight: 35 g approx. (without cable), 85 g approx. (including cable) |
| Détails | Measurement center 100mm 3.937 in type |
| Produit | CMOS type Micro Laser Distance Sensor |
| Matériel | Enclosure: Aluminum die-castFront cover: Acrylic |
| Linéarité | ±0.1%F.S. |
| Protection | IP67 (IEC) |
| Numéro de pièce | HG-C1100 |
| source lumineuse | Red semiconductor laser Class 2 (IEC / EN/ JIS / GB / KS / FDA) / Class II (FDA)(Note)Max. output: 1mWemission peak wavelength: 655nm 0.026 mil(Note) This product complies with the FDA regulations (FDA 21 CFR 1040.10 and 1040.11) in accordance with FDA Laser Notice No. 56, except for complying with IEC 60825-1 Ed. 3. |
| Nom du produit | CMOS type Micro Laser Distance Sensor HG-C |
| Diamètre du faisceau | ø120 μm4.7241 milapprox.(Note) This is the size in the measurement center distance. These values were defined by using 1 / e2(13.5% approx.) of the center light intensity. Due to leak light outside the specified area, the reflectance around the detecting point may be higher than at the point and this may affect the measurement value. |
| Répétabilité | 70 μm2.756 mil |
| temps de réponse | Switchable between 1.5 ms / 5 ms / 10 ms |
| Sortie de contrôle | NPN open-collector transistor- Maximum sink current: 50mA- Applied voltage: 30V DC or less (Between control output to 0V)- Residual voltage: 1.5V or less (At 50mA sink current)- Leakage current: 0.1 mA or less |
| Entrée externe | NPN non-contact input- Input conditionsInvalid: +8 to +V DC or OpenValid: 0 to +1.2V DC- Input impedance: 10kΩ approx. |
| Numéro de produit | HG-C1100 |
| Tension d'alimentation | 12 to 24V DCplus or minus 10% Ripple P-P 10% |
| rallonge de câble | Extension up to total 10 m393.701 ftis possible with 0.3 mm2, or more, cable. |
| Plage de mesure | ±35mm1.328 in |
| Humidité ambiante | 35 to 85% RH, Storage: 35 to 85% RH |
| Degré de pollution | 2 |
| résistance aux chocs | 500 m/s2acceleration (50 G approx.) in X, Y and Z directions three times each |
| Altitude opérationnelle | 2,000 m6561.680 ftor less |
| Éclairage ambiant | Incandescent light: 3,000 ℓx or less at the light-receiving face |
| Température ambiante | -10 to +45 ℃-14 to 113 ℉(No dew condensation or icing allowed), Storage: -20 to +60 ℃-4 to 140 ℉ |
| Consommation de courant | 40 mA or less (at 24V DC supply voltage)65 mA or less (at 12V DC supply voltage)Note : Specifications have been changed from shipment in August, 2016. For shipment before July 2016 ： 40 mA or less (at 24 V DC supply voltage), 60 mA or less (at 12 V DC supply voltage) |
| résistance aux vibrations | 10 to 55 Hz (period: 1 min.) frequency, 1.5 mm0.059 indouble amplitude in X, Y and Z directions for two hours each |
| distance entre les centres de mesure | 100mm3.937 in |
| Caractéristiques de température | 0.03% F.S. /℃ |
| Sortie de contrôle : Opération de sortie | Either Light-ON or Dark-ON |
| Sortie analogique : Sortie de courant analogique | • Output range: 4 to 20mA (at alarm: 0mA)• Output impedance: 300Ω or lessNote : Analog current output has been added from shipment in August 2016. |
| Sortie analogique : Sortie de tension analogique | • Output range: 0 to 5 V (at alarm: +5.2 V)• Output impedance: 100Ω |
| Sortie de contrôle : Protection contre les courts-circuits | Incorporated (Auto reset type) |
| Réglementations et certifications applicables | CE Marking (EMC Directive, RoHS Directive), UKCA Marking (EMC Regulations, RoHS Regulations), FDA Regulations, UL/c-UL Certification(Note) : The UL/c-UL certified products have been shipped since April, 2017. |
Description du produit
Micro Displacement Laser Sensor, measurement range 100mm. ± 35mm., repeatability 70μm., beam diameter approx. 120μm., digital NPN output, analog output 0-5V / 4-20mA, cable 2m
Caractéristiques principales
- Qualité de niveau industriel
- Conforme RoHS
- Certifié CE
- Garantie d’un an
Documents du produit
Fiche technique
Spécifications techniques et données de performance
Manuel d'utilisateur
Guide d'installation et d'utilisation
