UHLC211FE

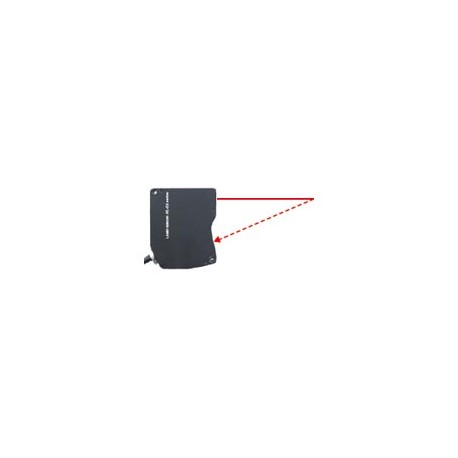

UHLC211FE HL-C211FE PANASONIC Sensorhead HL-C2, Laserclass 2, 110mm±15mm, 0.25μm, Spottype
$0.00USD
4737 en stock
Spécifications clés
Article:Specifications
Câble:Cabtyre cable, 0.5 m 1.640 ft long with connector
Poids:300 g approx. (including cable)
Détails:Sensor head (Middle distance High precision)
Informations sur le fournisseur
PANASONIC
Produits : 4316
Habituellement expédié sous 2 à 3 jours ouvrables
Qualité garantie
Livraison rapide
Support technique
Spécifications techniques
| Paramètre | Valeur |
|---|---|
| Article | Specifications |
| Câble | Cabtyre cable, 0.5 m 1.640 ft long with connector |
| Poids | 300 g approx. (including cable) |
| Détails | Sensor head (Middle distance High precision) |
| Produit | Ultra High-speed High-precision Laser Displacement Sensor |
| Matériel | Enclosure: Die-cast aluminumCase cover: Die-cast aluminumFront cover: Glass |
| Accessoire | English warning label: 1 set [The FDA regulations conforming type includes a set of both the IEC label (written in English) and JIS label (written in Japanese)]. |
| Linéarité | plus or minus 0.03 % F.S.(Note) Indicates error with respect to the ideal linear values for digital displacement output when standard objects were measured by our company. It may vary depending on the types of objects being measured. |
| Mode de configuration | Diffuse reflectiveSpecular reflective |
| Numéro de pièce | HL-C211FE |
| source lumineuse | Red semiconductor laser (Peak emission wavelength: 658 nm 0.026 mil)Class 2 (IEC / JIS / GB), Class II (FDA)Max. output: 1 mW |
| Nom du produit | Ultra High-speed・High-precision Laser Displacement Sensor HL-C2 |
| Diamètre du faisceau | dia. 80 micro m dia. 3.150 mil approx.(Note) This beam diameter is the size at the measurement center distance. These values were defined by using 1/e2 (13.5 %) of the center light intensity.If there is a slight leakage of light outside the normal spot diameter and if the periphery surrounding the sensing point has a higher reflectivity than the sensing point itself, then the results may be affected. |
| Numéro de produit | HL-C211FE |
| rallonge de câble | Extension up to total 30 m 98.425 ft is possible, with optional cable. |
| Plage de mesure | Diffuse reflective: plus or minus 15 mm plus or minus 0.591 inSpecular reflective: plus or minus 14.5 mm plus or minus 0.571 in(Note) Measuring range at sampling periods of 20 micro s and 10 micro s is as follows.[Diffuse reflective]20 micro s: +0.5 to +15.0 mm +0.020 to +0.591 in10 micro s: +12.5 to +15.0 mm +0.492 to +0.591 in[Specular reflective]20 micro s: +0.5 to +14.5 mm +0.020 to +0.571 in10 micro s: +12.5 to +14.5 mm +0.492 to +0.571 in |
| Élément récepteur | Linear image sensor |
| Indicateur : Émission laser | Green LED (lights up during laser emission) |
| Indicateur : Plage de mesure | Yellow LED(lights up when near the measurement center distance, blinks when within the measuring range, and lights out when outside of the measuring range.) |
| distance entre les centres de mesure | Diffuse reflective: 110 mm 4.331 inSpecular reflective: 106.7 mm 4.201 in |
| Caractéristiques de température | 0.01 % F.S./degrees |
| Résistance environnementale : Protection | IP67 (IEC) (excluding the connector) |
| Résolution [Nombre moyen d'échantillons] | 0.25 micro m 0.010 mil [256](Note) The P-P value for the deviation in the digital measurement values at the measurement center range has been converted for the measurement center distance. |
| Réglementations et certifications applicables | CE Marking (EMC Directive, RoHS Directive), UKCA Marking (EMC Regulations, RoHS Regulations), China RoHS, FDA Regulations, Korea’s radio regulations (Radio Wave Act KC) |
| Résistance environnementale : humidité ambiante | 35 to 85 % RH, Storage: 35 to 85 % RH |
| Résistance environnementale : Résistance aux chocs | 196 m/s2 acceleration (20 G approx.) in X,Y and Z directions for three times each |
| Résistance environnementale : Éclairement ambiant | Incandescent light: 3,000 liter x at the light-receiving face |
| Résistance environnementale : Température ambiante | 0 to +45 degrees +32 to +113 degrees Fahrenheit (No dew condensation), Storage: -20 to +70 degrees -4 to +158 degrees Fahrenheit |
| Résistance environnementale : Résistance aux vibrations | 10 to 55 Hz (period: 1 min.) frequency, 1.5 mm 0.059 in amplitude in X,Y and Z directions for two hours each |
Description du produit
HLC2 laser sensor. Spot direct reflection sensor head ø80 μm, class 2, detection range 110 ± 15 mm., resolution 0.25 μm
Caractéristiques principales
- Qualité de niveau industriel
- Conforme RoHS
- Certifié CE
- Garantie d’un an
Documents du produit
Fiche technique
Spécifications techniques et données de performance
Manuel d'utilisateur
Guide d'installation et d'utilisation
