ULSH201

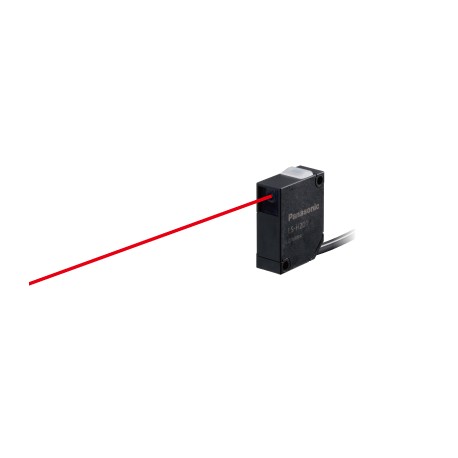

ULSH201 LS-H201 PANASONIC Sensor head, diffuse reflective, range 300mm, cable 2m
$0.00USD
4580 en stock
Spécifications clés
Article:Specifications
Câble:0.09 mm22-core two parallel shielded cables, 2 m 6.562 ft long(Note：Cable cannot be extended.)
Poids:Net weight: 50 g approx.Gross weight: 80 g approx.
Détails:Sensor heads(Coaxial reflective type)
Informations sur le fournisseur
PANASONIC
Produits : 4316
Habituellement expédié sous 2 à 3 jours ouvrables
Qualité garantie
Livraison rapide
Support technique
Spécifications techniques
| Paramètre | Valeur |
|---|---|
| Article | Specifications |
| Câble | 0.09 mm22-core two parallel shielded cables, 2 m 6.562 ft long(Note：Cable cannot be extended.) |
| Poids | Net weight: 50 g approx.Gross weight: 80 g approx. |
| Détails | Sensor heads(Coaxial reflective type) |
| Produit | Amplifier-separated Type Digital Laser Sensor |
| Matériel | Enclosure: PBTIndicator cover: PolycarbonateBeam-emitting / receiving surfaces: Glass |
| Accessoire | MS-LS-1 (Mounting bracket): 1pc. |
| taille du spot | Approx. dia. 2 mm dia. 0.079 in or less (at a distance from the sensor head of 300 mm 11.811 in) |
| Protection | IP40 (IEC) |
| Numéro de pièce | LS-H201 |
| Nom du produit | Amplifier-separated Type Digital Laser Sensor LS-500 |
| Numéro de produit | LS-H201 |
| Objet de détection | Opaque, translucent, or transparent object(Note：Make sure to confirm detection with an actual sensor before use.) |
| Humidité ambiante | 35 to 85 % RH, Storage: 35 to 85 % RH |
| résistance aux chocs | 98 m / s2acceleration (10 G approx.) in X, Y and Z directions three times each |
| Portée de détection : HYPR | 750mm29.528 in(Note：The sensing range of the coaxial reflective type sensor is specified for white non-glossy paper (100 × 100 mm3.937 × 3.937 in) as the object.)(Note：The sensing ranges for coaxial retroreflective type sensors are values for the RF-330 reflector. In addition, the sensing range is the possible setting range for the reflector. The sensor can detect an object less than 0.01 m0.033 ftaway. Note that if there are white papers or specular objects near the sensor head, reflected light from these objects may be received. In such cases, use the amplifier unit’s receiving sensitivity function to lower the sensitivity, change the response time, or move the sensor head away from the target object. The incident light intensity may vary with the condition of the reflector surface. When using one of the applicableLS-500series amplifiers, leave an adequate safety margin when setting the threshold.) |
| Portée de détection : U-LG | 600mm23.622 in(Note：The sensing range of the coaxial reflective type sensor is specified for white non-glossy paper (100 × 100 mm3.937 × 3.937 in) as the object.)(Note：The sensing ranges for coaxial retroreflective type sensors are values for the RF-330 reflector. In addition, the sensing range is the possible setting range for the reflector. The sensor can detect an object less than 0.01 m0.033 ftaway. Note that if there are white papers or specular objects near the sensor head, reflected light from these objects may be received. In such cases, use the amplifier unit’s receiving sensitivity function to lower the sensitivity, change the response time, or move the sensor head away from the target object. The incident light intensity may vary with the condition of the reflector surface. When using one of the applicableLS-500series amplifiers, leave an adequate safety margin when setting the threshold.) |
| Éclairage ambiant | Incandescent light: 3,000 ℓx or less at the light-receiving face |
| Température ambiante | -10 to +55degrees + 14 to + 131 degrees Fahrenheit (No dew condensation or icing allowed), Storage: -20 to +70degrees -4 to +158 degrees Fahrenheit |
| Indicateur de fonctionnement | Orange LED (lights up when the amplifier output is ON) |
| résistance aux vibrations | 10 to 500 Hz frequency, 1.5 mm double amplitude or maximum acceleration 98 m/s2in X, Y, and Z direction for 2 hours each. |
| Amplificateurs compatibles | LS-501(P), LS-501(P)-C2(Note：When using the thru-beam typeLS-H101□orLS-H102□, do not set the receiving light sensitivity (gctL) of the applicableLS-500series amplifier to level 2 or less. This is because there is a possibility of sensing becoming unstable.) |
| Élément émetteur : Type | Red semiconductor laser diode |
| résistance d'isolation | 20 MOhm , or more, with 250 V DC megger between all supply terminals connected together and enclosure |
| Conformité réglementaire | EMC Directive, RoHS Directive |
| Portée de détection : mode standard | 300mm11.811 in(Note：The sensing range of the coaxial reflective type sensor is specified for white non-glossy paper (100 × 100 mm3.937 × 3.937 in) as the object.)(Note：The sensing ranges for coaxial retroreflective type sensors are values for the RF-330 reflector. In addition, the sensing range is the possible setting range for the reflector. The sensor can detect an object less than 0.01 m0.033 ftaway. Note that if there are white papers or specular objects near the sensor head, reflected light from these objects may be received. In such cases, use the amplifier unit’s receiving sensitivity function to lower the sensitivity, change the response time, or move the sensor head away from the target object. The incident light intensity may vary with the condition of the reflector surface. When using one of the applicableLS-500series amplifiers, leave an adequate safety margin when setting the threshold.) |
| Portée de détection : mode RAPIDE | 200mm7.874 in(Note：The sensing range of the coaxial reflective type sensor is specified for white non-glossy paper (100 × 100 mm3.937 × 3.937 in) as the object.)(Note：The sensing ranges for coaxial retroreflective type sensors are values for the RF-330 reflector. In addition, the sensing range is the possible setting range for the reflector. The sensor can detect an object less than 0.01 m0.033 ftaway. Note that if there are white papers or specular objects near the sensor head, reflected light from these objects may be received. In such cases, use the amplifier unit’s receiving sensitivity function to lower the sensitivity, change the response time, or move the sensor head away from the target object. The incident light intensity may vary with the condition of the reflector surface. When using one of the applicableLS-500series amplifiers, leave an adequate safety margin when setting the threshold.) |
| Portée de détection : mode H-SP | 150mm5.906 in(Note：The sensing range of the coaxial reflective type sensor is specified for white non-glossy paper (100 × 100 mm3.937 × 3.937 in) as the object.)(Note：The sensing ranges for coaxial retroreflective type sensors are values for the RF-330 reflector. In addition, the sensing range is the possible setting range for the reflector. The sensor can detect an object less than 0.01 m0.033 ftaway. Note that if there are white papers or specular objects near the sensor head, reflected light from these objects may be received. In such cases, use the amplifier unit’s receiving sensitivity function to lower the sensitivity, change the response time, or move the sensor head away from the target object. The incident light intensity may vary with the condition of the reflector surface. When using one of the applicableLS-500series amplifiers, leave an adequate safety margin when setting the threshold.) |
| Portée de détection : mode U-LG | 450mm17.717 in(Note：The sensing range of the coaxial reflective type sensor is specified for white non-glossy paper (100 × 100 mm3.937 × 3.937 in) as the object.)(Note：The sensing ranges for coaxial retroreflective type sensors are values for the RF-330 reflector. In addition, the sensing range is the possible setting range for the reflector. The sensor can detect an object less than 0.01 m0.033 ftaway. Note that if there are white papers or specular objects near the sensor head, reflected light from these objects may be received. In such cases, use the amplifier unit’s receiving sensitivity function to lower the sensitivity, change the response time, or move the sensor head away from the target object. The incident light intensity may vary with the condition of the reflector surface. When using one of the applicableLS-500series amplifiers, leave an adequate safety margin when setting the threshold.) |
| tenue en tension | 1,000 V AC for one min. between all supply terminals connected together and enclosure |
| Élément émetteur : classe Laser | Class 1 [IEC / EN / JIS / GB / KS / FDA](Note：This product complies with the FDA regulations (FDA 21 CFR 1040.10 and 1040.11) in accordance with FDA Laser Notice No. 56, except for complying with IEC 60825-1 Ed. 3. |
| Élément émetteur : Puissance de sortie maximale | 2mW |
| Élément émetteur : longueur d'onde d'émission maximale | 660 nm 0.026 mil |
Description du produit
LS500. Sensor head, diffuse reflection, range 750mm
Caractéristiques principales
- Qualité de niveau industriel
- Conforme RoHS
- Certifié CE
- Garantie d’un an
