ULSH91A

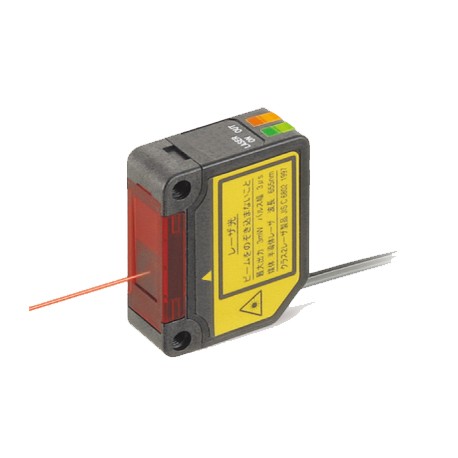

ULSH91A LSH91A LS-H91-A PANASONIC Laser reflection light barrier (sensor head), laser class 2, 5m
$0.00USD
3922 en stock
Spécifications clés
Article:Specifications
Câble:0.1 mm2, single core two parallel shielded cables, 2 m6.562 ftlong (Connector for amplifier attached)(Note) Cable cannot be extended.
Poids:Net weight: 30 g approxGross weight: 45 g approx
Détails:Sensor head (Coaxial retroreflective type)
Informations sur le fournisseur
PANASONIC
Produits : 4316
Habituellement expédié sous 2 à 3 jours ouvrables
Qualité garantie
Livraison rapide
Support technique
Spécifications techniques
| Paramètre | Valeur |
|---|---|
| Article | Specifications |
| Câble | 0.1 mm2, single core two parallel shielded cables, 2 m6.562 ftlong (Connector for amplifier attached)(Note) Cable cannot be extended. |
| Poids | Net weight: 30 g approxGross weight: 45 g approx |
| Détails | Sensor head (Coaxial retroreflective type) |
| Produit | Digital Laser Sensor |
| Matériel | Enclosure: PBT (Mounting part: PEI)Lens cover: Acrylic |
| Accessoire | RF-330(Reflector): 1 pc.Explanation label: 1 set(Labels are written in Japanese and Chinese for compliance with various standards.) |
| Protection | IP40 (IEC) |
| Numéro de pièce | LS-H91-A |
| Nom du produit | Digital Laser Sensor LS-400 |
| Numéro de produit | LS-H91-A |
| Humidité ambiante | 35 to 85 % RH, Storage: 35 to 85 % RH |
| résistance aux chocs | 100 m/s2acceleration (10 G approx.) in X, Y and Z directions three times each |
| Éclairage ambiant | Incandescent light: 3,000 lx or less at the light-receiving face |
| Température ambiante | -10 to +55 ℃+14 to +131 ℉(No dew condensation or icing allowed),Storage:-20 to +70 ℉ |
| Indicateur de fonctionnement | Orange LED (lights up when the amplifier output is ON) |
| Ajusteur de forme ponctuelle | - |
| résistance aux vibrations | 10 to 500 Hz frequency, 1.5 mm0.059 in(10 G max.) double amplitude in X, Y and Z directions for two hours each |
| Amplificateurs compatibles | LS-401(P), LS-401(P)-C2, LS-403 |
| résistance d'isolation | 20 MOhm , or more, with 250 V DC megger between all supply terminals connected together and enclosure |
| Portée de détection : mode standard | 0.1 to 3 m0.328 to 9.843 ft(Note) The sensing range is the value for the RF-330 reflector. In addition, the sensing range is the possible setting range for the reflector. The sensor can detect an object less than 0.1 m0.328 ftaway. Note that if there are white papers or specular objects near the sensor head, reflected light from these objects may be received. In such cases, use the M.G.S. function of the amplifier unit to change the response time or incident light sensitivity. |
| Portée de détection : mode RAPIDE | 0.1 to 1 m0.328 to3.281 ft(Note) The sensing range is the value for the RF-330 reflector. In addition, the sensing range is the possible setting range for the reflector. The sensor can detect an object less than 0.1 m0.328 ftaway. Note that if there are white papers or specular objects near the sensor head, reflected light from these objects may be received. In such cases, use the M.G.S. function of the amplifier unit to change the response time or incident light sensitivity. |
| Portée de détection : mode H-SP | 0.1 to 1 m0.328 to3.281 ft(Note) The sensing range is the value for the RF-330 reflector. In addition, the sensing range is the possible setting range for the reflector. The sensor can detect an object less than 0.1 m0.328 ftaway. Note that if there are white papers or specular objects near the sensor head, reflected light from these objects may be received. In such cases, use the M.G.S. function of the amplifier unit to change the response time or incident light sensitivity. |
| Portée de détection : mode U-LG | 0.1 to 5 m0.328 to16.404 ft(Note) The sensing range is the value for the RF-330 reflector. In addition, the sensing range is the possible setting range for the reflector. The sensor can detect an object less than 0.1 m0.328 ftaway. Note that if there are white papers or specular objects near the sensor head, reflected light from these objects may be received. In such cases, use the M.G.S. function of the amplifier unit to change the response time or incident light sensitivity. |
| Indicateur d'émission laser | Green LED (lights up during laser emission) |
| tenue en tension | 1,000 V AC for one min.between all supply terminals connected together and enclosure |
| Conformité à la directive de marquage CE | EMC Directive, RoHS Directive |
| Élément émetteur : conforme aux normes IEC/JIS/GB | Red semiconductor laser,Class 2 (IEC / JIS / GB)(Max. output: 3 mW Peak emission wavelength: 655 nm0.026 mil) |
| Élément émetteur : conforme aux normes FDA / IEC / JIS | Red semiconductor laser,Class 1 (FDA / IEC / JIS)(Max. output: 1 mW Peak emission wavelength: 655 nm 0.026 mil)(Note) This product complies with 21 CFR 1040.10 and 1040.11 Laser Notice No. 50, dated July 26, 2001, issued by CDRH (Center for Devices and Radiological Health) under the FDA (Food and Drug Administration). For details, refer to the Laser Notice No. 50. |
Description du produit
LS Series Digital Laser Sensor Head, Class 1, Coaxial Reflection on Mirror (5 m)
Caractéristiques principales
- Qualité de niveau industriel
- Conforme RoHS
- Certifié CE
- Garantie d’un an
