UPMF45PC3

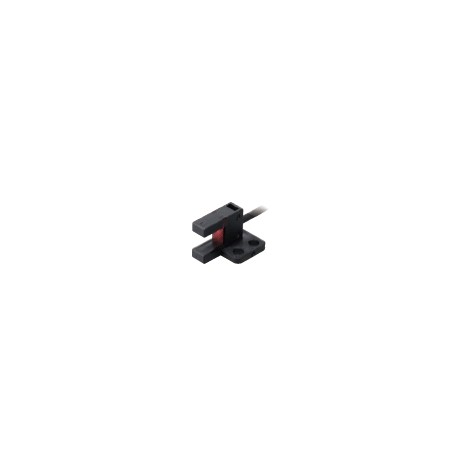

UPMF45PC3 PM-F45-P-C3 PANASONIC u-shape type, F-shape, 6mm, PNP, cable 3m
$0.00USD
4999 en stock
Spécifications clés
Article:Specifications
Câble:0.09-mm24-core cabtyre cable, PVC, 3 m9.843 ftlong
Sortir:PNP open-collector transistor・Maximum source current: 50 mA・Applied voltage: 30 V DC or less (between output and + V)・Residual voltage: 2 V or less (at 50 mA source current), 1 V or less (at 16 mA source current)
Remarque:Where measurement conditions have not been specified precisely, the conditions used were an ambient temperature of +23 ℃+73.4 ℉.
Informations sur le fournisseur
PANASONIC
Produits : 4316
Habituellement expédié sous 2 à 3 jours ouvrables
Qualité garantie
Livraison rapide
Support technique
Spécifications techniques
| Paramètre | Valeur |
|---|---|
| Article | Specifications |
| Câble | 0.09-mm24-core cabtyre cable, PVC, 3 m9.843 ftlong |
| Sortir | PNP open-collector transistor・Maximum source current: 50 mA・Applied voltage: 30 V DC or less (between output and + V)・Residual voltage: 2 V or less (at 50 mA source current), 1 V or less (at 16 mA source current) |
| Remarque | Where measurement conditions have not been specified precisely, the conditions used were an ambient temperature of +23 ℃+73.4 ℉. |
| Poids | Net weight: 30 g approx.Gross weight: 35 g approx. |
| Détails | Compact / Cable type [F type] |
| Produit | Amplifier Built-in / U-shaped Micro Photoelectric Sensor |
| Matériel | Enclosure: PBTDisplay section: Polycarbonate |
| Hystérèse | 0.05 mm0.002 inor less |
| Protection | IP64 (IEC) |
| Numéro de pièce | PM-F45-P-C3 |
| Nom du produit | Amplifier Built-in / U-shaped Micro Photoelectric Sensor [Compact / Cable type]PM-45 |
| Répétabilité | 0.01 mm0.0004 inor less |
| temps de réponse | Under light received condition: 20 μs or lessUnder light interrupted condition: 80 μs or less(Maximum response frequency: 3 kHz)(Note)(Note) : Refer to the note on the specification page for the response frequency. |
| Portée de détection | 6 mm0.236 in(fixed) |
| longueur du câblage | Extension up to total 100 m328.084 ftis possible with 0.3 mm2, or more, cable.(Note 1) : If the cable is extended to 20 m65.617 ftor longer, confirm that the supply voltage at the end of the cable attached to the sensor is 4.5 V or higher.(Note 2) : For safety applications, do not exceed 30 m98.425 ft. |
| Numéro de produit | PM-F45-P-C3 |
| Tension d'alimentation | 5 to 24 V DC ±10 % Ripple P-P 10 % or less |
| Humidité ambiante | 5 to 85 % RH, Storage: 5 to 95 % RH |
| Élément émetteur | Infrared LED (Peak emission wavelength: 855 nm0.034 mil, non-modulated) |
| Degré de pollution | 3 |
| résistance aux chocs | 15,000 m/s2acceleration (1,500 G approx.) in X, Y and Z directions three times each |
| Éclairage ambiant | Fluorescent light: 1,000 ℓx at the light-receiving face |
| Température ambiante | -25 to +55 ℃-13 to +131 ℉(No dew condensation or icing allowed), Storage: -30 to +80 ℃-22 to +176 ℉ |
| Consommation de courant | 15 mA or less |
| Indicateur de fonctionnement | Orange LED (lights up under light received condition) |
| résistance aux vibrations | 10 to 2,000 Hz frequency, 1.5 mm0.059 indouble amplitude (maximum acceleration 196 m/s2) in X, Y and Z directions for two hours each |
| résistance d'isolation | 20 MΩ, or more, with 250 V DC megger between all supply terminals connected together and enclosure |
| Objet de détection minimal | 0.8 × 1.2 mm0.031 × 0.047 inopaque object |
| Sortie : Opération de sortie | Incorporated with 2 outputs: Light-ON / Dark-ON |
| tenue en tension | 1,000 V AC for one min. between all supply terminals connected together and enclosure |
| Sortie : Protection contre les courts-circuits | Incorporated |
| Réglementations et certifications applicables | CE Marking (EMC Directive, RoHS Directive), UKCA Marking (EMC Regulations, RoHS Regulations), ISO 13849-1 (Category 1, PLc) (Note), UL/c-UL certification(Note) : Conformed from December 2021 production. |
Description du produit
Compact miniature horseshoe photoelectric sensor, type F, 6mm range, 2 outputs (one for Light-ON and one for Dark-ON) PNP, 3m cable
Caractéristiques principales
- Qualité de niveau industriel
- Conforme RoHS
- Certifié CE
- Garantie d’un an
