UPMF65WP

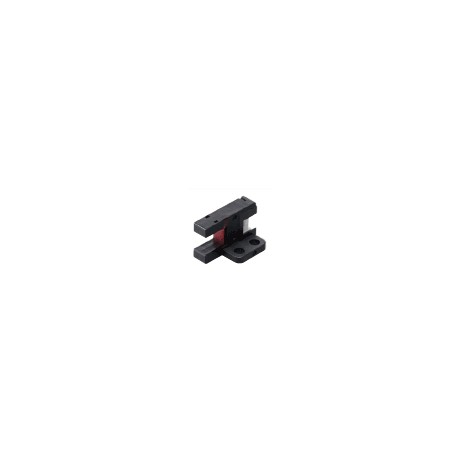

UPMF65WP PM-F65W-P PANASONIC u-shape type, F-shape, 6mm, PNP, connector, two mounting holes
$0.00USD
3972 en stock
Spécifications clés
Article:Specifications
Sortir:PNP open-collector transistor・Maximum source current: 50 mA・Applied voltage: 30 V DC or less (between output and + V)・Residual voltage: 2 V or less (at 50 mA source current), 1 V or less (at 16 mA source current)
Remarque:・Where measurement conditions have not been specified precisely, the conditions used were an ambient temperature of +23 ℃+73.4 ℉.・Mounting-compatible with our conventional models [PM-F54P]
Poids:Net weight: 3 g approx.Gross weight: 3 g approx.
Informations sur le fournisseur
PANASONIC
Produits : 4316
Habituellement expédié sous 2 à 3 jours ouvrables
Qualité garantie
Livraison rapide
Support technique
Spécifications techniques
| Paramètre | Valeur |
|---|---|
| Article | Specifications |
| Sortir | PNP open-collector transistor・Maximum source current: 50 mA・Applied voltage: 30 V DC or less (between output and + V)・Residual voltage: 2 V or less (at 50 mA source current), 1 V or less (at 16 mA source current) |
| Remarque | ・Where measurement conditions have not been specified precisely, the conditions used were an ambient temperature of +23 ℃+73.4 ℉.・Mounting-compatible with our conventional models [PM-F54P] |
| Poids | Net weight: 3 g approx.Gross weight: 3 g approx. |
| Détails | Compact / Connector built-in type [F type] |
| Produit | Amplifier Built-in / U-shaped Micro Photoelectric Sensor |
| Matériel | Enclosure: PBTDisplay section: Polycarbonate |
| Hystérèse | 0.05 mm0.002 inor less |
| Protection | IP40 (IEC) |
| Numéro de pièce | PM-F65W-P |
| longueur du câble | Extension up to total 100 m328.084 ftis possible with 0.3 mm2, or more, cable.(Note) If the cable is extended to 20 m65.617 ftor longer, confirm that the supply voltage at the end of the cable attached to the sensor is 4.5 V or higher. |
| Nom du produit | Amplifier Built-in / U-shaped Micro Photoelectric Sensor [Compact / Connector built-in type] PM-65 |
| Répétabilité | 0.01 mm0.0004 inor less |
| temps de réponse | Under light received condition: 20 μs or lessUnder light interrupted condition: 80 μs or less(Maximum response frequency: 3 kHz)(Note)(Note) Refer to the note on the specification page for the response frequency. |
| Portée de détection | 6 mm0.236 in(fixed) |
| Numéro de produit | PM-F65W-P |
| Tension d'alimentation | 5 to 24 V DC ±10 % Ripple P-P 10 % or less |
| Humidité ambiante | 5 to 85 % RH, Storage: 5 to 95 % RH |
| Élément émetteur | Infrared LED (Peak emission wavelength: 855 nm0.034 mil, non-modulated) |
| Degré de pollution | 3 |
| résistance aux chocs | 15,000 m/s2acceleration (1,500 G approx.) in X, Y and Z directions three times each |
| Éclairage ambiant | Fluorescent light: 1,000 ℓx at the light-receiving face |
| Température ambiante | -25 to +55 ℃-13 to +131 ℉(No dew condensation or icing allowed), Storage: -30 to +80 ℃-22 to +176 ℉ |
| Consommation de courant | 15 mA or less |
| Indicateur de fonctionnement | Orange LED (lights up under light received condition) |
| résistance aux vibrations | 10 to 2,000 Hz frequency, 1.5 mm0.059 indouble amplitude (maximum acceleration 196 m/s2) in X, Y and Z directions for two hours each |
| résistance d'isolation | 20 MΩ, or more, with 250 V DC megger between all supply terminals connected together and enclosure |
| Objet de détection minimal | 0.8 × 1.2 mm0.031 × 0.047 inopaque object |
| Sortie : Opération de sortie | Incorporated with 2 outputs: Light-ON / Dark-ON |
| tenue en tension | 1,000 V AC for one min. between all supply terminals connected together and enclosure |
| Sortie : Protection contre les courts-circuits | Incorporated |
| Réglementations et certifications applicables | CE Marking (EMC Directive, RoHS Directive), UKCA Marking (EMC Regulations, RoHS Regulations), UL/c-UL Listing certification |
Description du produit
Miniature and compact horseshoe photoelectric sensor, type F, 6mm range, 2 outputs (one for Light-ON and one for Dark-ON) PNP, with connector, with 2 mounting holes
Caractéristiques principales
- Qualité de niveau industriel
- Conforme RoHS
- Certifié CE
- Garantie d’un an
Documents du produit
Fiche technique
Spécifications techniques et données de performance
Manuel d'utilisateur
Guide d'installation et d'utilisation
