USQ4C11

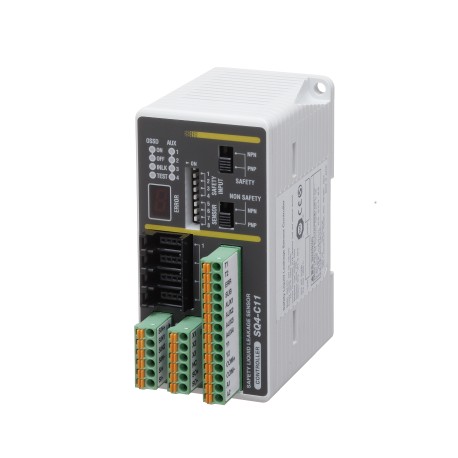

USQ4C11 SQ4-C11 PANASONIC Safety Controller, Control Category 4, Ple SIL3, safety liquid leak sensors can be..
$0.00USD
3985 en stock
Spécifications clés
Article:Specifications
PFHD:When PNP output is selected: 1.89 × 10-9(when connecting 4 safety liquid leak sensors)When NPN output is selected: 1.80 × 10-9(when connecting 4 safety liquid leak sensors)
MTTFD:100 years or more
Poids:Net weight: 170 g approxGross weight: 440 g approx
Informations sur le fournisseur
PANASONIC
Produits : 4316
Habituellement expédié sous 2 à 3 jours ouvrables
Qualité garantie
Livraison rapide
Support technique
Spécifications techniques
| Paramètre | Valeur |
|---|---|
| Article | Specifications |
| PFHD | When PNP output is selected: 1.89 × 10-9(when connecting 4 safety liquid leak sensors)When NPN output is selected: 1.80 × 10-9(when connecting 4 safety liquid leak sensors) |
| MTTFD | 100 years or more |
| Poids | Net weight: 170 g approxGross weight: 440 g approx |
| Détails | Controller |
| Produit | Safety Liquid Leak Sensor [Control Category 4 PLe SIL3] |
| Matériel | Main unit case: PC + ABS (alloy) |
| Fonctions | Interlock / lockout cancel / Test input / External device monitor / Safety input / Control output polarity selection / Non-safety output polarity selection / Sensor connection number setting |
| Protection | IP20 (IEC) (However, it should be in IP54 protection structure of control panel) |
| Numéro de pièce | SQ4-C11 |
| Nom du produit | Safety Liquid Leak Sensor [Control Category 4 PLe SIL3] SQ4 |
| Tension d'alimentation | 24 V DC+10-15 % Ripple P-P 10 % or less |
| Sortie de verrouillage | OFF for lockout (Rating: Same as sensor monitor output) |
| Numéro de produit | SQ4-C11 |
| Humidité ambiante | 35 to 85 % RH, Storage: 35 to 85 % RH |
| Sortie auxiliaire | Negative logic output of control output 1 / 2 (OSSD 1 / 2) (Rating: Same as sensor monitor output)[Auxiliary output ON when control output 1 / 2 (OSSD 1/2) is OFF] |
| Température ambiante | -10 to +55 ℃+14 to +131℉(No dew condensation or icing allowed), Storage: -20 to +70 ℃-4 to +158 ℉ |
| Consommation de courant | 200 mA or less |
| Normes applicables : SEMI | Conforming to SEMI-S2-0310a |
| Normes applicables : Japon | JIS B 9705-1 (Category 4), JIS C 0508-1 to 7 (SIL3) |
| Normes applicables : Europe | EN 55011 Class A, EN 61000-6-2, EN 50178, EN ISO 13849-1 (Category 4, PLe), EN 61508-1 to 7 (SIL3)(Note) Regarding EU Machinery Directive, a Notified Body, TÜV SÜD, has certified with the type examination certificate. |
| Normes applicables : Corée du Sud | S1-G-1, S2-W-5, KS C IEC 60947-5-2 |
| Sorties de contrôle (OSSD 1, OSSD 2) | PNP open-collector transistor / NPN open-collector transistor (switch method)[Selecting PNP output]- Maximum source current: 200 mA- Applied voltage: Same as power voltage (between control output to +V)- Residual voltage: 2.5 V or less (at 200 mA source current)[Selecting NPN output]- Maximum sink current: 200 mA- Applied voltage: Same as power voltage (between control output to 0 V)- Residual voltage: 2.0 V or less (at 200 mA sink current) |
| Normes applicables : Amérique du Nord | ANSI/UL 508, CAN/CSA C22.2 No.14(Note) With regards to the standards in the US, under the US regulation 29 CFR 1910.7, TÜV SÜD America, a Nationally Recognized Testing Laboratory (NRTL) certified by OSHA, has certified with the safety certificate based on UL / ANSI standards.With regards to the standards in Canada, under the safety regulations based on CEC (Canadian Electric Code), TÜV SÜD America, a Certification Body accredited by SCC, has certified with the safety certificate based on CSA standards. |
| Normes applicables : Norme internationale | ISO 13849-1 (Category 4, PLe), IEC 61508-1 to 7 (SIL3) |
| Sortie de contrôle (OSSD 1, OSSD 2) : Temps de réponse | 20 ms or less (excluding the response time of the sensor) |
| Sorties de commande (OSSD 1, OSSD 2) : Mode de fonctionnement | ON when normal condition or initial detection, OFF when detection leakage or wrong installation |
| Sortie de surveillance des capteurs (AUX1, 2, 3, 4, sortie non sécurisée) | PNP open-collector transistor / NPN open-collector transistor (switch method)[Selecting PNP output]- Maximum source current: 60 mA- Applied voltage: Same as power voltage(between sensor monitor output to +V)- Residual voltage: 2.5 V or less (at 60 mA source current)[Selecting NPN output]- Maximum sink current: 60 m A- Applied voltage: Same as power voltage(between sensor monitor output to 0 V)- Residual voltage: 2.0 V or less (at 60 mA sink current) |
| Sortie de surveillance des capteurs (AUX1, 2, 3, 4, sortie non sécurisée) : Temps de réponse | 100 ms or less (excluding the response time of the sensor) |
| Sortie de commande (OSSD 1, OSSD 2) : Circuit de protection (Protection contre les courts-circuits) | Incorporated |
| Sortie de surveillance des capteurs (AUX1, 2, 3, 4, sortie non sécurisée) : mode de fonctionnement (fonctionnement en sortie) | ON when normal condition, OFF when initial detection or accidental leakage |
| Sortie de surveillance du capteur (AUX1, 2, 3, 4, sortie non sécurisée) : circuit de protection (protection contre les courts-circuits) | Incorporated |
Description du produit
Safety Controller; Category 4, Ple SIL3; up to 4 safety sensors can be connected for liquid detection
Caractéristiques principales
- Qualité de niveau industriel
- Conforme RoHS
- Certifié CE
- Garantie d’un an
